Point Pod at a glance
The opening, retained insert, clear space below and power connection are organized together so customers and fabricators can plan with confidence.
The supplied top cup is empty and designed for a matching piece of the countertop or benchtop. As a fractional reference, it is approximately 3 11/16 in.; finish it to 3.66 in. (93 mm) and test-fit it to the supplied top cup.
Press the top once to raise or lower the unit and bring its connections within reach.
Two tamper-resistant North American receptacles, with a choice of 15W or 65W USB charging.
The unit may extend upward, downward or sideways. Keep every receptacle face vertical—never facing upward.
Plan the 4 in. (101.6 mm) installation opening and top insert together. The insert is approximately 3 11/16 in. before final trimming; finish it to 3.66 in. (93 mm).
Allow 450 mm (17.72 in.) of clear depth below, plus room for the lead, plug and surrounding services.
Connect the fitted cord to a suitable grounded, GFCI-protected receptacle. The Point Pod does not include built-in GFCI protection.
Important: Keep every receptacle face vertical and connect the unit to a GFCI-protected supply.

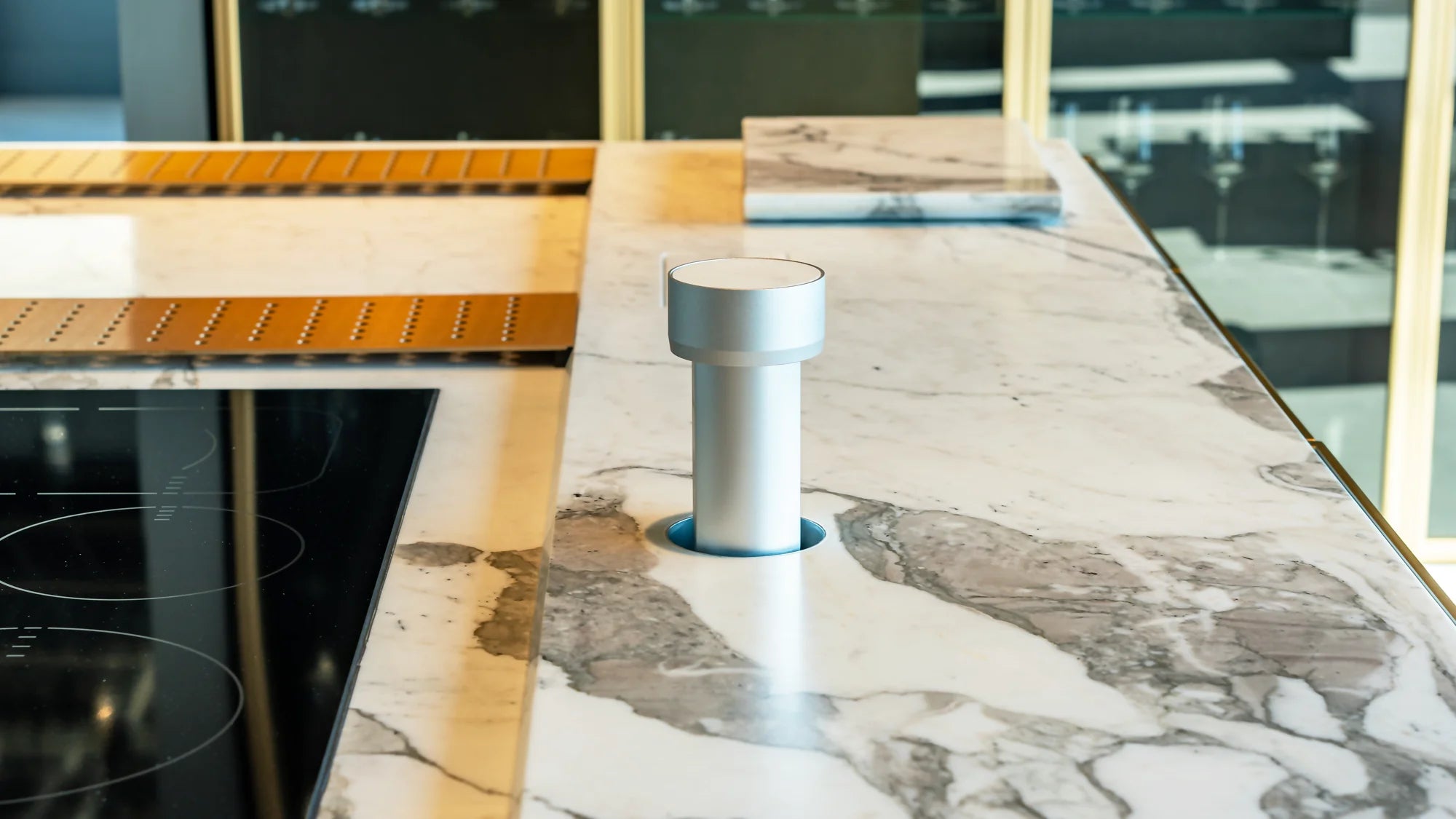

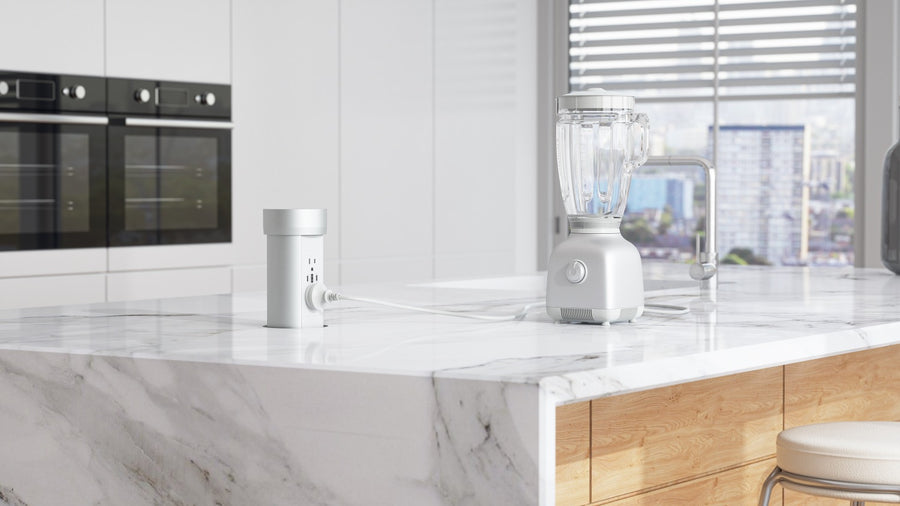

Motorized access keeps power within reach when needed and retracts it into the countertop between uses.
The supplied top cup is empty and designed to hold a matching piece of your countertop for a flush, integrated finish. As a fractional reference, it is approximately 3 11/16″; finish it to 3.66″ (93 mm) and test-fit it to the supplied top cup.
The supplied top cup accepts a countertop insert up to 1.18″ (30 mm) thick. Approximate fractional diameter: 3 11/16″. Finished diameter: 3.66″ (93 mm). Trim it to the final size and test-fit it to the supplied top cup; four adjustment screws help level it.
Installation requires a 4″ (101.6 mm) opening. Plan the opening and top insert together. The insert is approximately 3 11/16″ before final trimming; finish it to 3.66″ (93 mm).
Allow 17.72″ (450 mm) of clear depth below the countertop, plus space for the cord and receptacle. Check cabinetry and services before cutting.

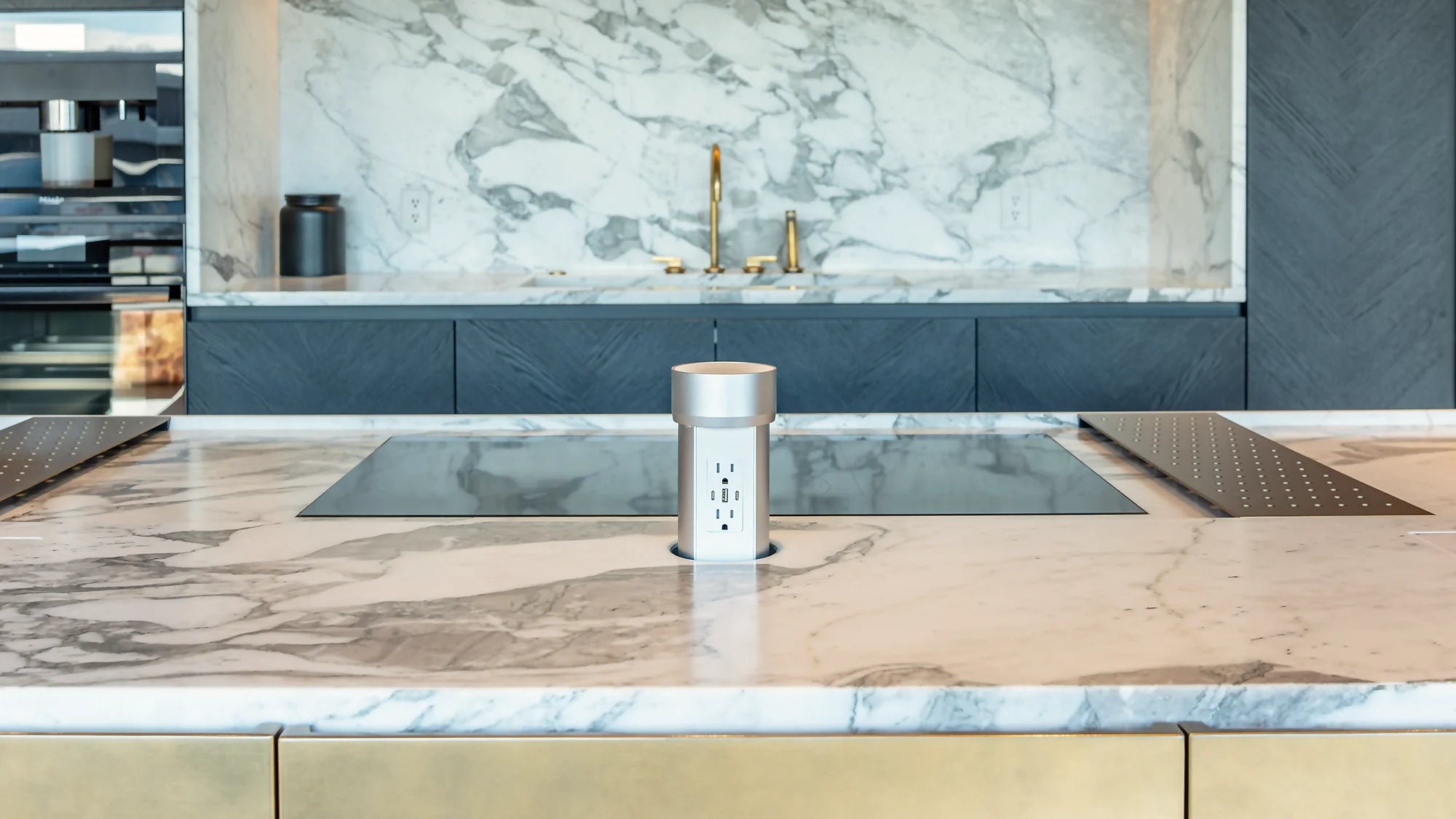

Press the top once to raise or lower the unit and bring the tamper-resistant power outlets and USB charging ports within reach.

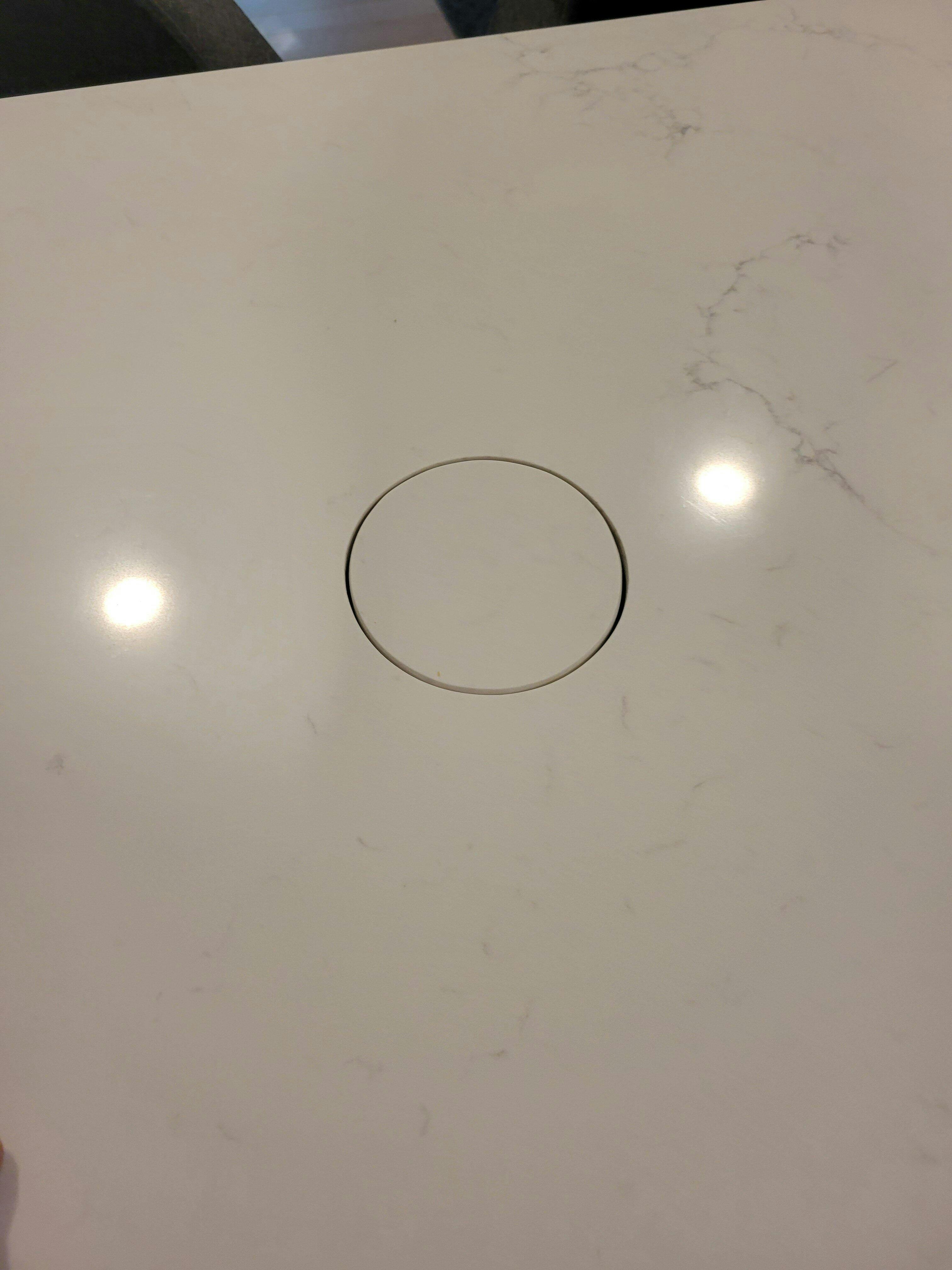

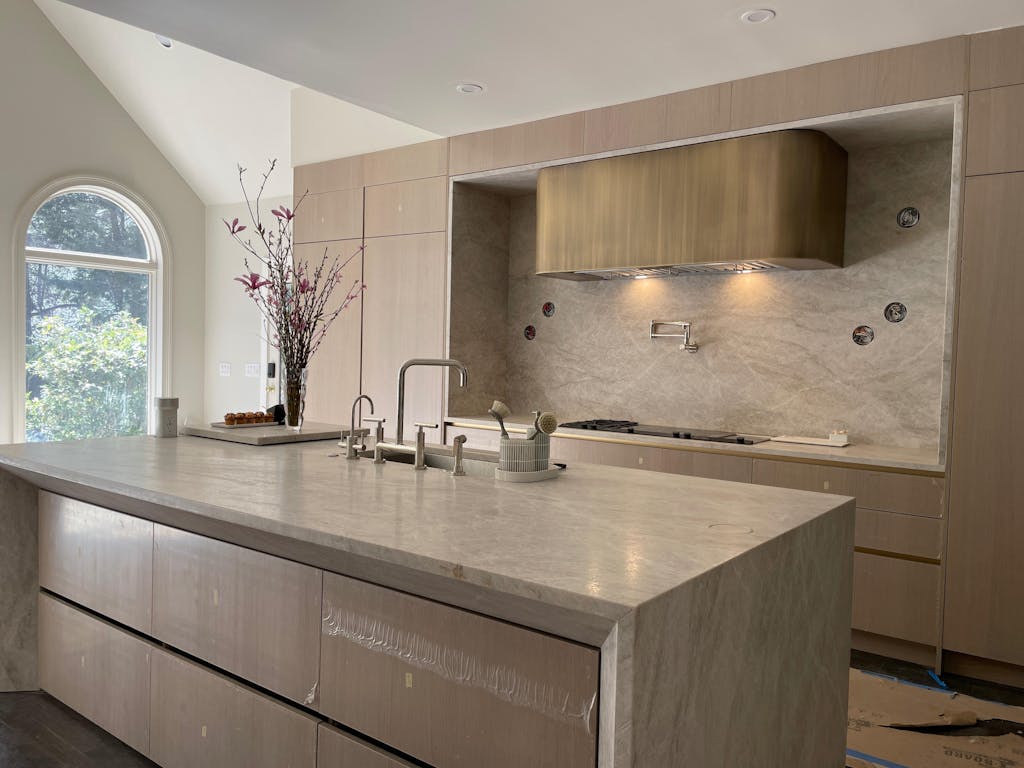

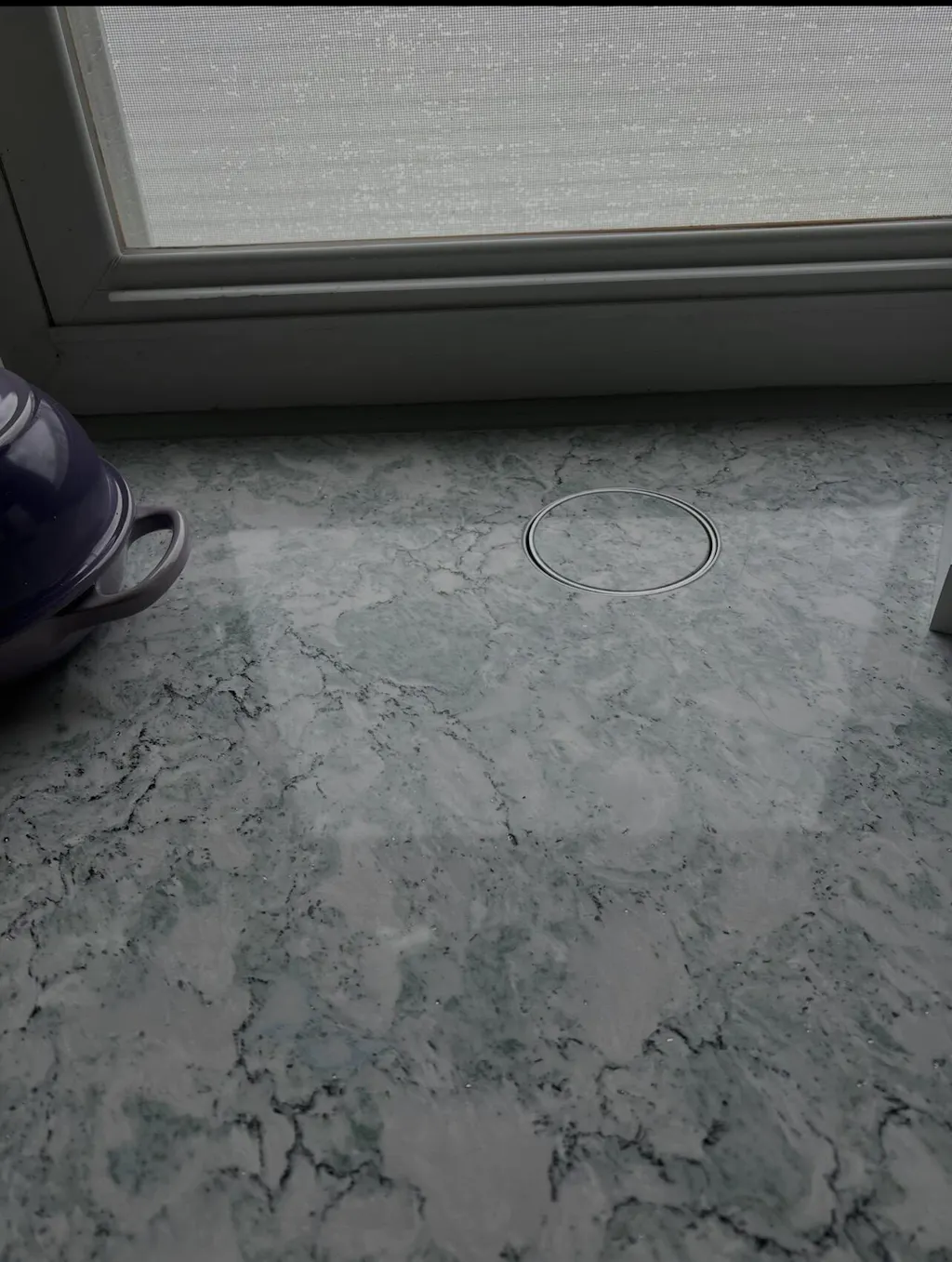

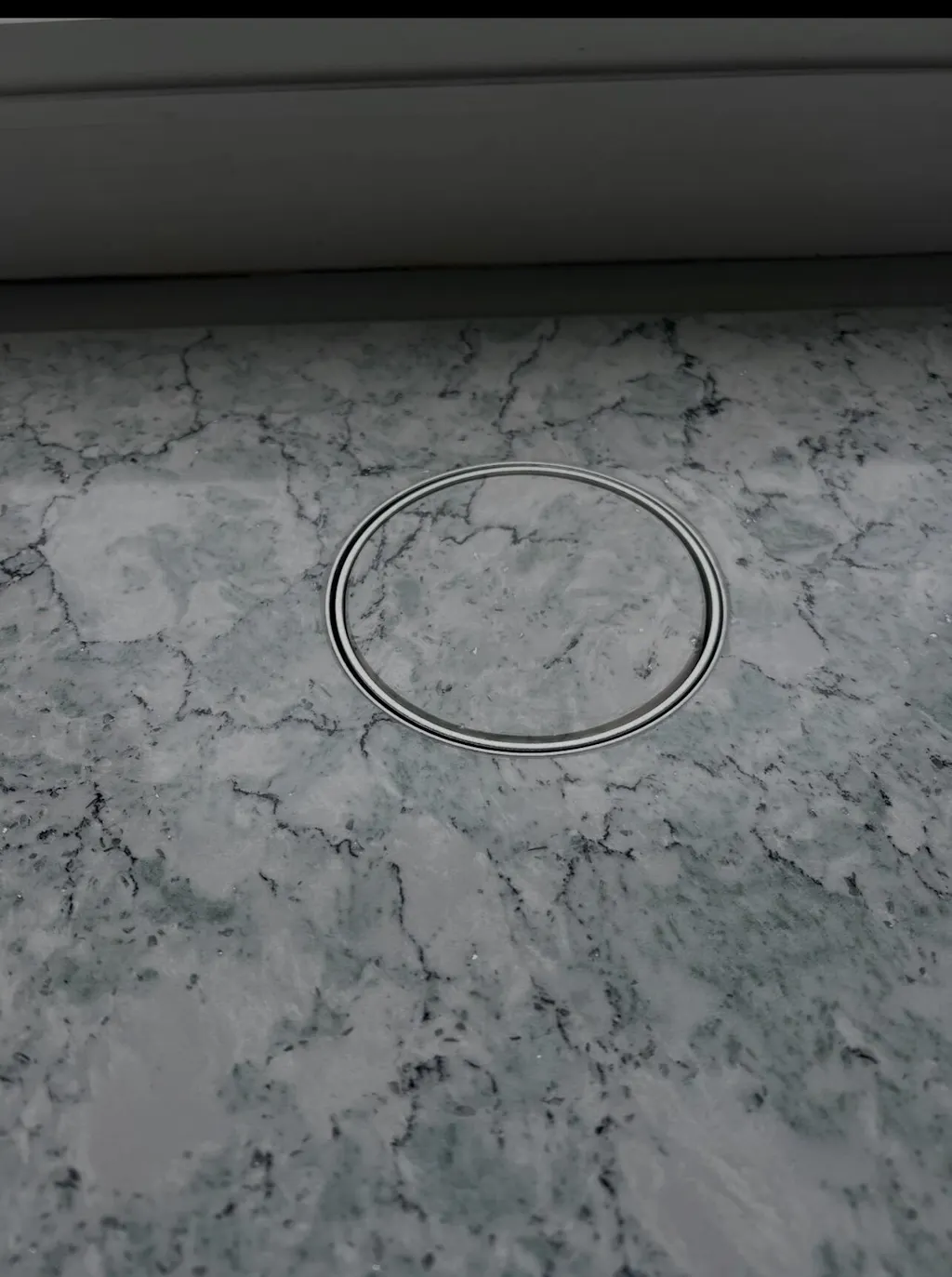

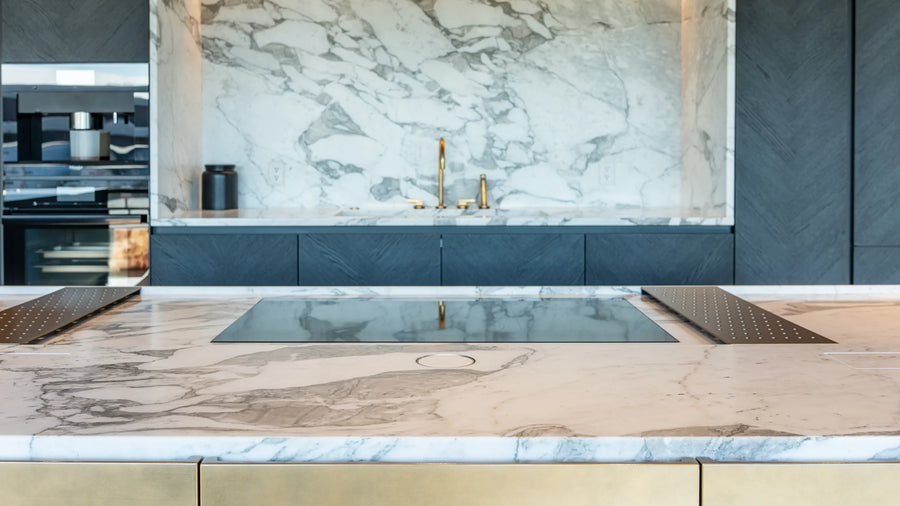

When closed, only the ring and your matching countertop insert remain visible for a discreet, integrated finish.
The Point Pod may extend upward, downward or sideways. Keep every receptacle face vertical—never facing upward.
The rigid lifting assembly is designed to remain stable during everyday plugging and unplugging.
The attached 6 ft cord connects to a suitable grounded, GFCI-protected US receptacle below the countertop. Countertop cutting and mechanical fitting are still required.
ETL Listed for indoor countertop use. Follow the installation manual, use required GFCI protection and unplug connected equipment before closing the unit.
Protected by U.S. Patent 10,777,985 B2.
Recipient of a 2019 Good Design Award. Designed and engineered in Australia.

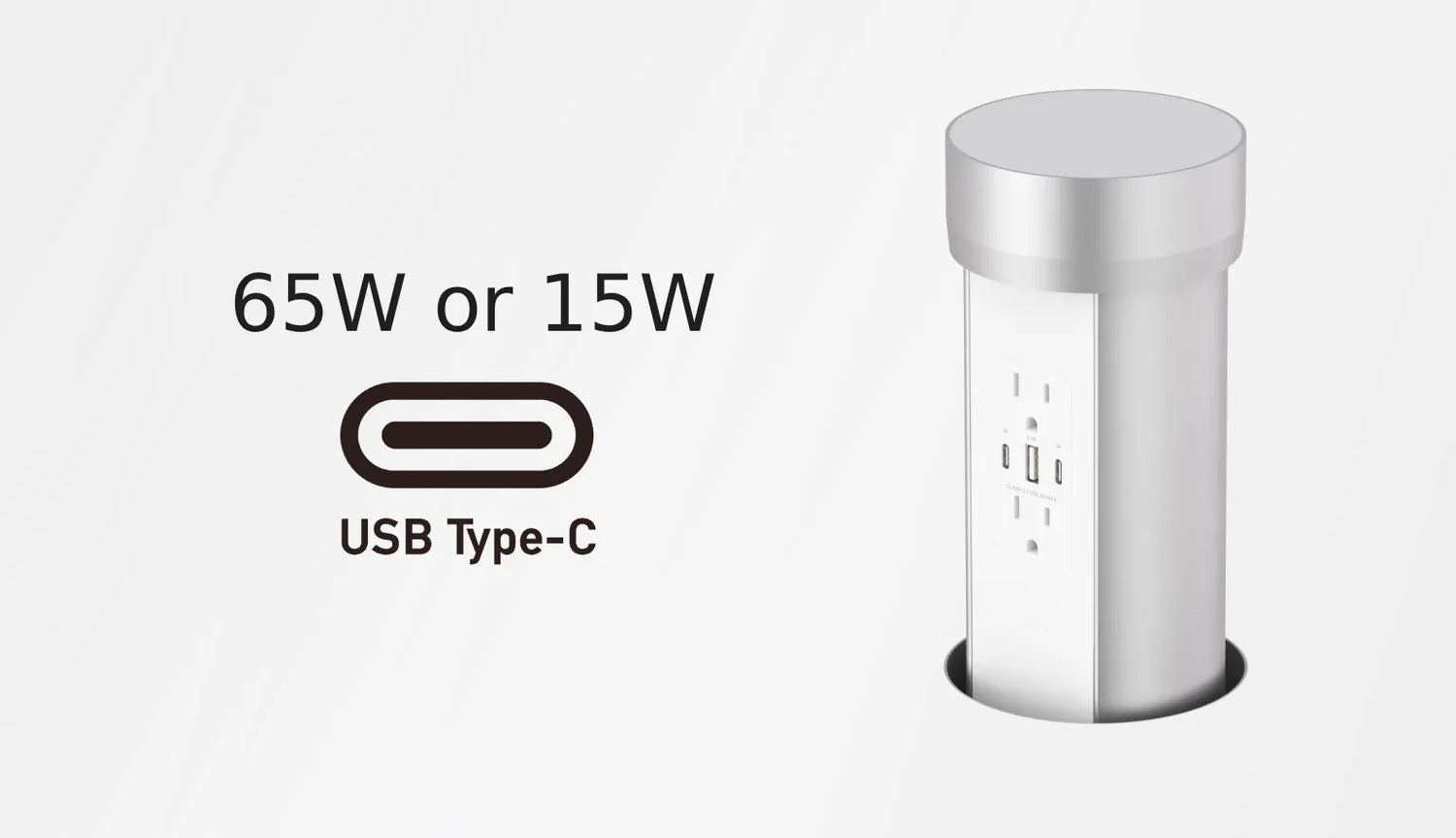

15W: two USB-C ports and one USB-A port, rated up to 5V/3A (15W). 65W: two USB-C PD 3.0 ports and no USB-A; up to 65W from one port, or up to 30W per port when both are used.
The 15W version has two USB-C ports and one USB-A port. The 65W version has two USB-C PD 3.0 ports and no USB-A.
Rated 125 V AC, 60 Hz, 15 A and 1,875 W maximum total connected load.
IP44 rated for indoor, dry-location use. The design helps divert incidental countertop splashes, but the unit is not waterproof. Never spray water into it or use wet receptacles.
ETL Listed for the United States to UL 962A and for Canada to CAN/CSA-C22.2 No. 308.
The unit, empty top cup, mounting components, 6 ft cord and instructions are included. Countertop insert material, adhesive and cutting tools are not included.
Review the installation sequence before cutting. Countertop fabrication and mechanical fitting are required. Read the installation guide.

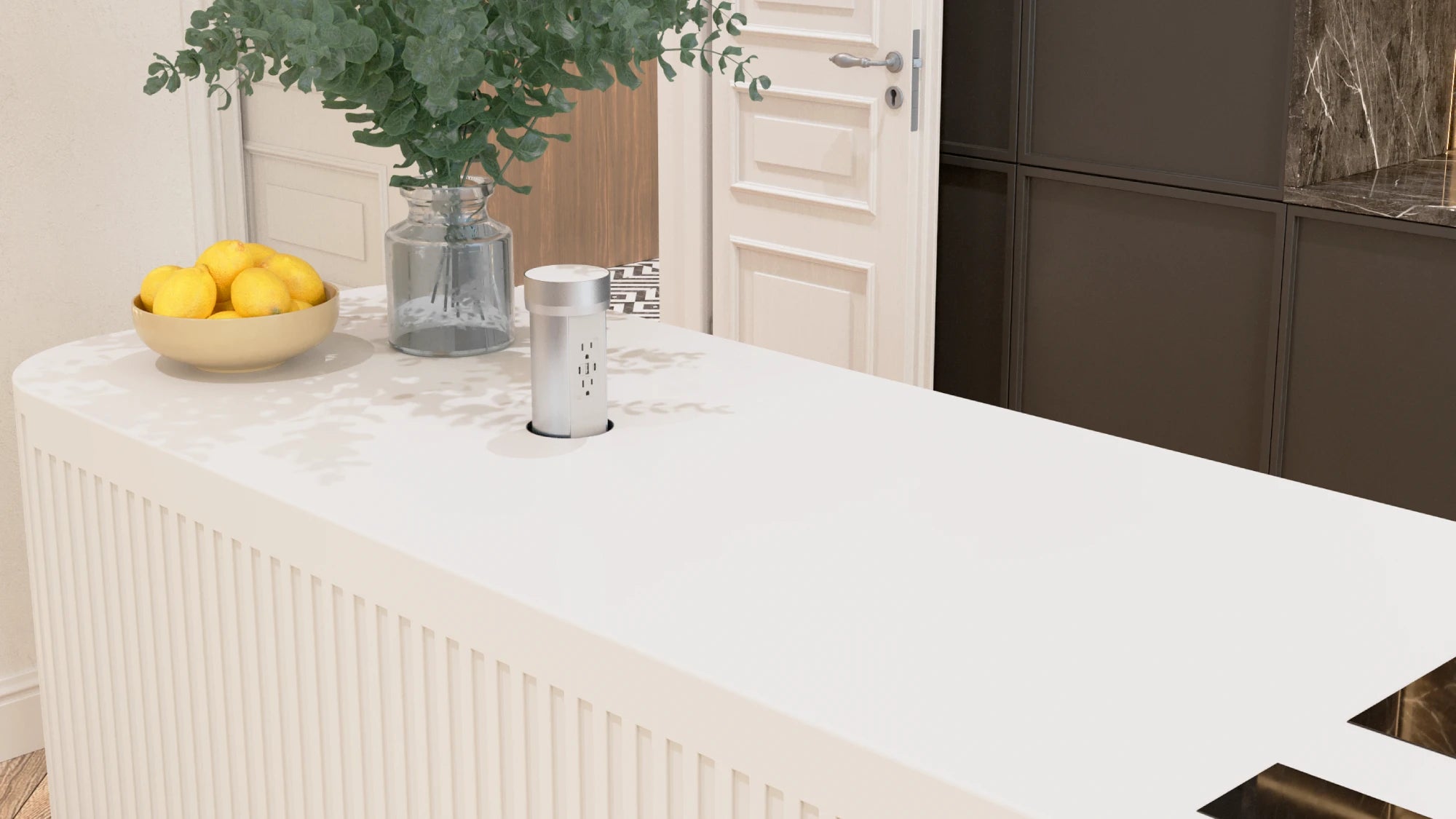

Use this image as a visual scale reference. Final installation must follow the stated opening and clearance dimensions.
Includes a two-year parts-and-labour warranty. Eligible purchases can be extended to up to four years; conditions apply. View warranty details.
Eligible returns are accepted within 30 days when the product is undamaged and in good condition. A 10% restocking fee applies; exchanges within 30 days have no restocking fee. View the policy.
Free shipping covers most U.S. addresses. Most U.S. orders dispatch from Texas within one business day. Estimated delivery dates are shown at checkout when available. View current shipping information.
The Point Pod does not include built-in GFCI protection. Connect it to a GFCI-protected receptacle or branch circuit and install it in accordance with NEC 406.5(E) and local codes. View the GFCI adapter.
Our 4″ Point Pod hole saw creates the opening and matching insert in one cut. Make a trial cut in an offcut before cutting the finished countertop. View the hole saw.
Review the installation guide and confirm the opening, clearances, power supply and local-code requirements before cutting the finished countertop.
Installation requires a 4″ (101.6 mm) opening, a countertop insert approximately 3 11/16″ before final trimming—finished to 3.66″ (93 mm)—and 17.72″ (450 mm) of clear depth below the countertop.
No hardwiring is required. The 6 ft cord plugs into a suitable grounded receptacle, but the Point Pod has no built-in GFCI protection. It must connect to a GFCI-protected receptacle or branch circuit in accordance with NEC 406.5(E) and local codes.
The Point Pod may extend upward, downward or sideways. In every orientation, keep the receptacle faces vertical—never facing upward. Have it professionally installed in accordance with local requirements.
The Point Pod Connect, empty top cup, outer ring, mounting flange, fastening clip, 6 ft power cord and documentation are included. Countertop insert material, adhesive and cutting tools are not included.
Important: Unplug and remove all connected equipment before closing the unit. The Point Pod is IP44 rated for indoor, dry-location use; it is not waterproof. Avoid spills into an open outlet and never spray water into the unit.
Dimensions and details
Core product and installation information is consolidated here, while the full cutting guide remains open on the page.

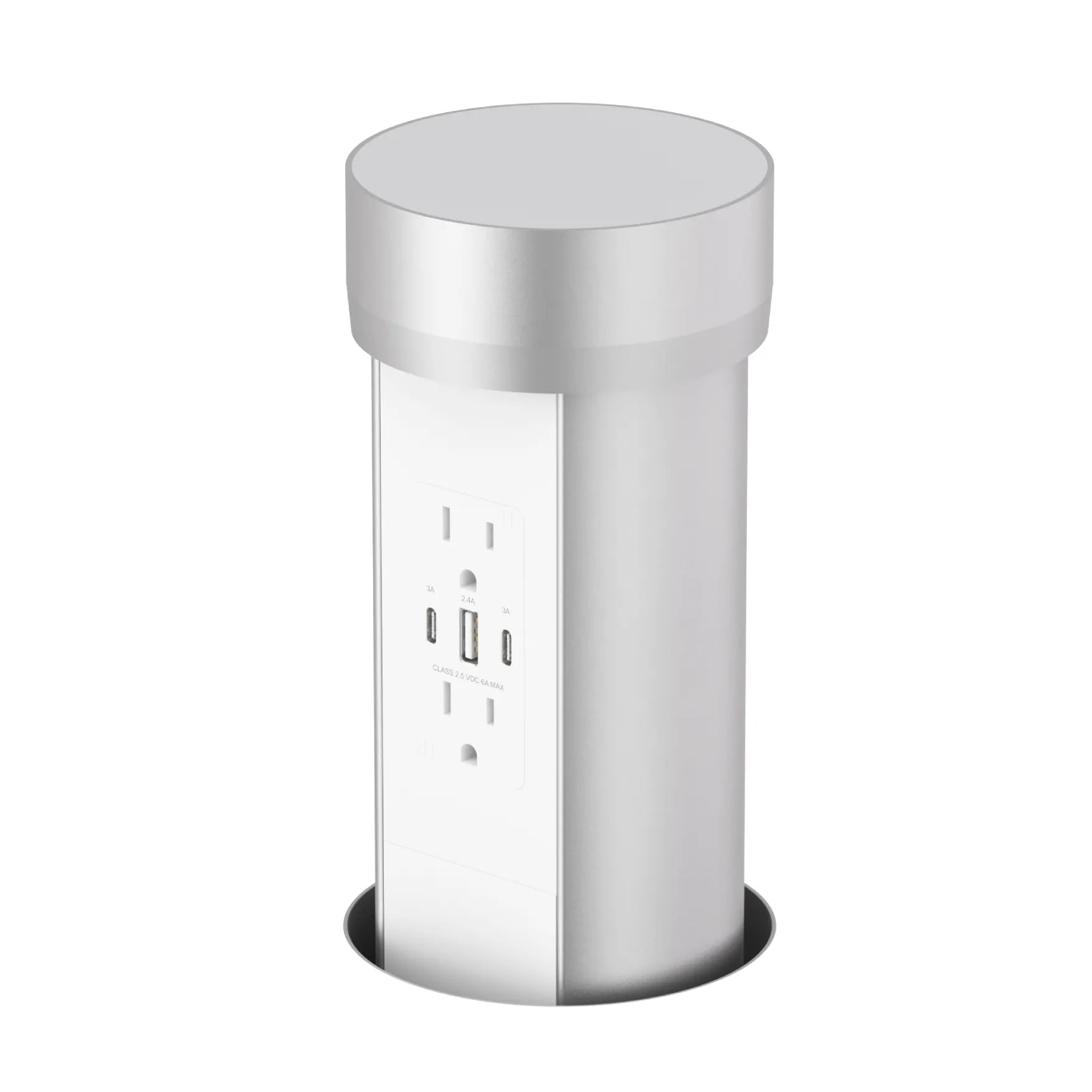

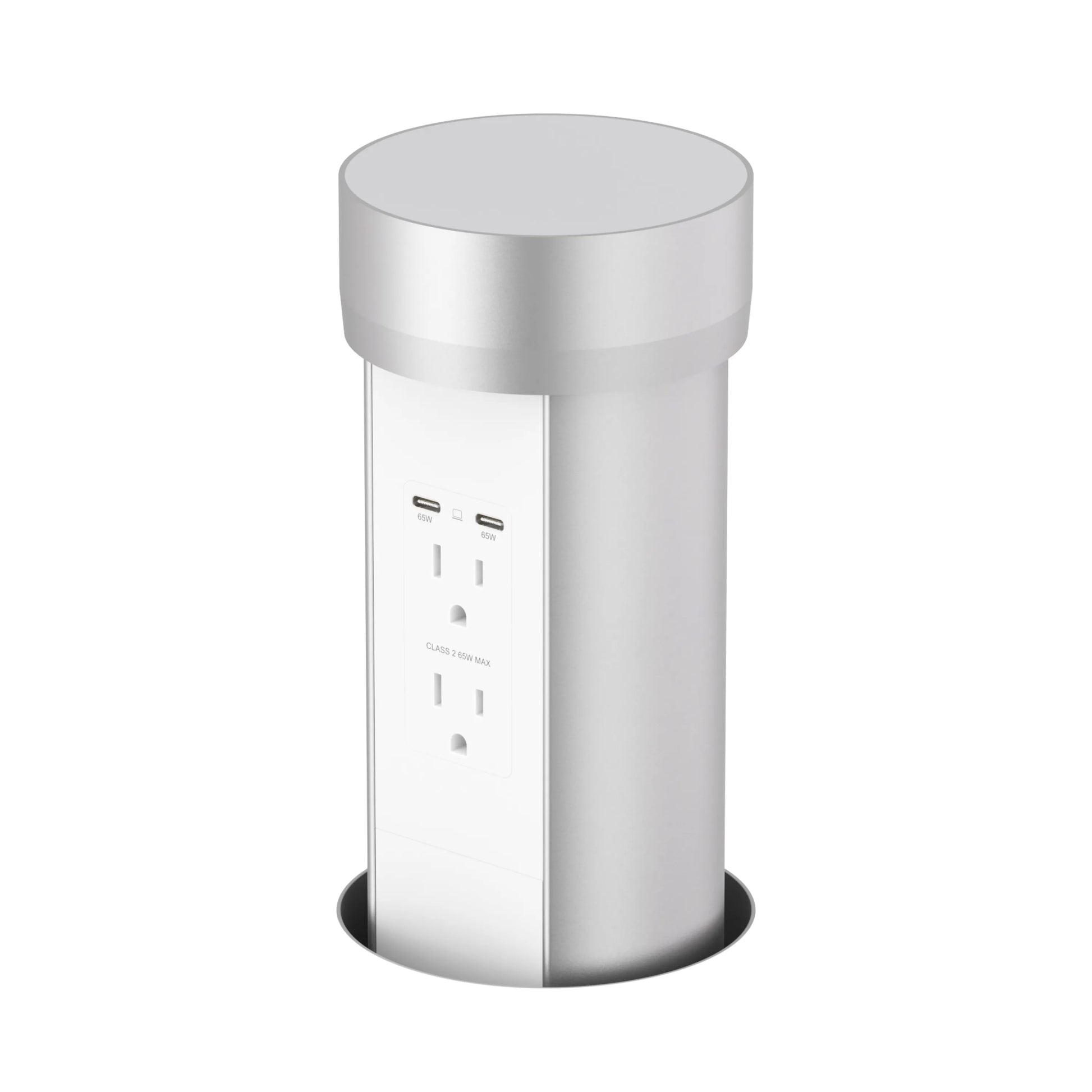

Point Pod Connect Silver Kitchen Counter Pop Up Outlet. Silver finish; motorized one-touch lift; IP44 for indoor use.
Two tamper-resistant North American receptacles, with a choice of 15W or 65W USB charging.
Opening: 4 in. (101.6 mm). Top insert: approximately 3 11/16 in. before trimming; finish to 3.66 in. (93 mm). Clear depth below: 450 mm (17.72 in.). Mounting-flange diameter: 160mm.
125V AC, 60Hz; 15A / 1,875W maximum total load. ETL Listed to UL 962A and CAN/CSA-C22.2 No. 308. Two-year parts-and-labour warranty.
Dimensions, model information and electrical ratings.
Plan the countertop work, clearances and installation sequence.
Two-year standard warranty, extendable to up to four years for eligible purchases; conditions apply.
Submit the order number or serial number with a description of the issue for faster assistance.
Free shipping covers most U.S. addresses. Most U.S. orders dispatch from Texas within one business day. Estimated delivery dates are shown at checkout when available. View current shipping information.
No. The top cup is supplied empty and is designed for a matching piece of the countertop or benchtop. As a fractional reference, it is approximately 3 11/16 in.; finish it to 3.66 in. (93 mm) and test-fit it to the supplied top cup. Finished inserts may be available separately by email request at additional cost.
Yes. It may extend upward, downward or sideways, provided every receptacle face remains vertical and never faces upward.
Plan the 4 in. (101.6 mm) opening and top insert together. The insert is approximately 3 11/16 in. before final trimming; finish it to 3.66 in. (93 mm) and test-fit it to the supplied top cup. When using a hole saw, make a trial cut in matching off-cut material before cutting the finished surface.
The fitted US plug does not require hardwiring, but countertop fabrication and mechanical installation are still required. Any required electrical work must be completed by a licensed electrician.
