Motorized lift
Press and hold the top control until it lights, then press once to raise or retract the unit. Sleep mode helps reduce accidental operation.
V3CS at a glance
Motorized power that retracts into a clean, uncluttered surface.
Motorized pop-up countertop outlet with two US receptacles, USB-A, USB-C and 10W wireless charging, with a silver top and body.
Features
Power and USB
Two US receptacles, one USB-A port and one USB-C port.
Wireless charging
Charge a compatible Qi device on the top surface at up to 10W.
Installation planning
Plan the 3.74 in. opening
Plan a 3.74 in. opening with a ±0.20 in. tolerance (95 ±5 mm), then confirm countertop thickness and clear space below.
Allow clear space below
Leave clear space for the full moving body, locking hardware, lead and plug.
Mount and connect
Remove the locking ring, lower the unit into the opening, refit and tighten the ring from below, then connect the fitted US plug.
Important: The fully closed lid helps resist incidental surface splashes, but the unit is not waterproof. Keep exposed connections dry and do not exceed 15A / 1,650W total.
The difference between ordinary and extraordinary is that little extra
Installation opening
Plan a 3.74 in. opening with a ±0.20 in. tolerance (95 ±5mm; acceptable range 3.54–3.94 in. / 90–100mm).
Splash-resistant when fully closed
When fully closed, the lid closes over the opening and helps resist incidental surface splashes. It is not waterproof. Keep it dry and do not open or use it while wet.
Wireless charging
Place a compatible Qi device on the top to charge at up to 10W.
All the charging options
Two US receptacles, USB-A up to 10W, USB-C up to 15W and Qi wireless charging up to 10W.
Sturdy construction
The extruded aluminum body and rigid extended form are designed for routine countertop use.
Plug and play
Supplied with a 6 ft lead and fitted US plug. Any electrical alteration must follow local requirements and be completed by a qualified professional.
Elegant design, high quality build
Constructed with an extruded aluminum body and glass top.
Single-button motorized lift
Press and hold the top control until it lights, then press once to raise or retract the unit. Sleep mode helps reduce accidental operation.
Maximum output
110V AC, 50–60Hz; 15A / 1,650W total maximum. USB-A provides up to 10W, USB-C up to 15W and Qi wireless charging up to 10W.
Designed with safety in mind
Keep exposed receptacles and charging ports dry, clear obstructions before operating the lift, and do not exceed the total electrical rating.

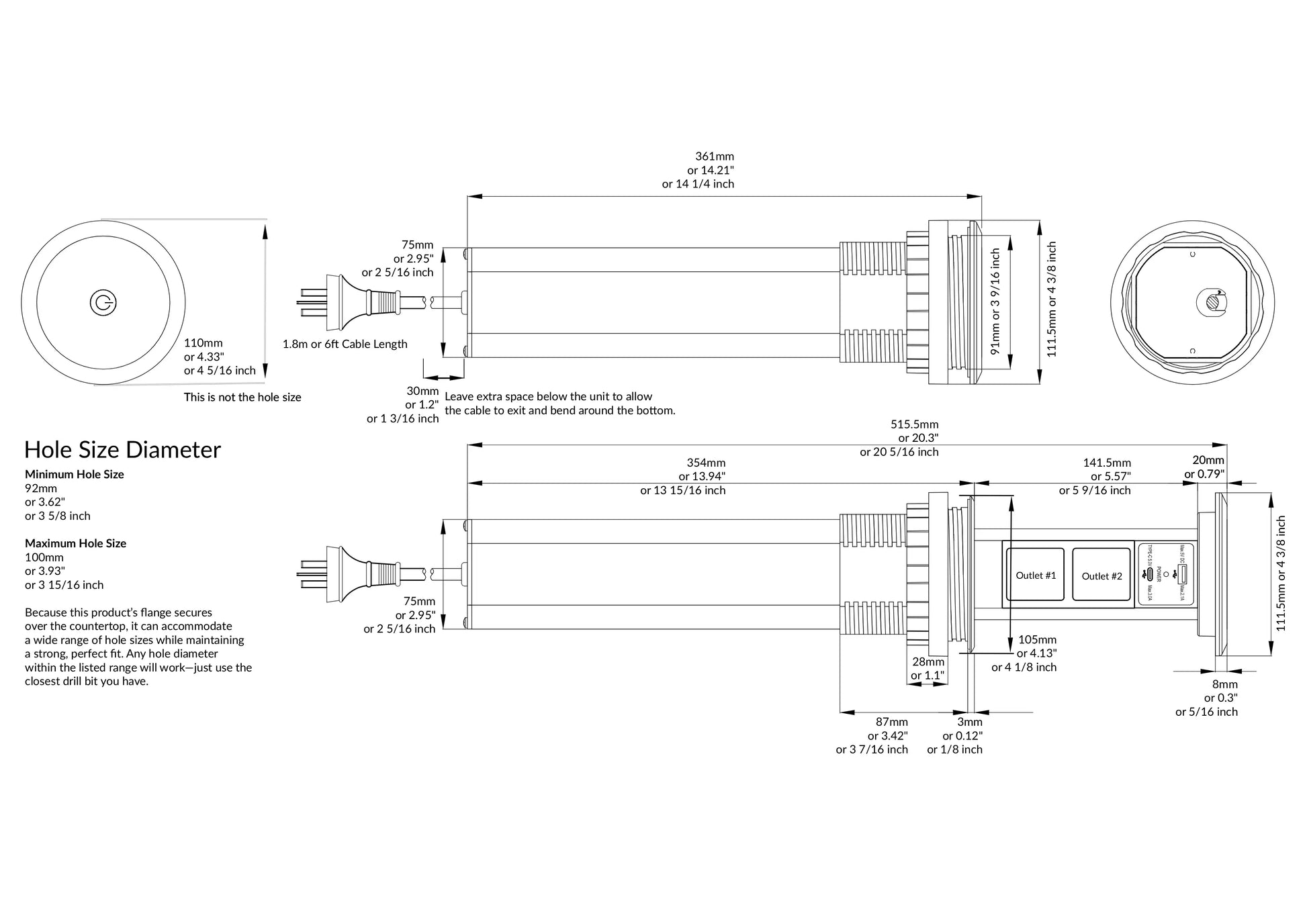

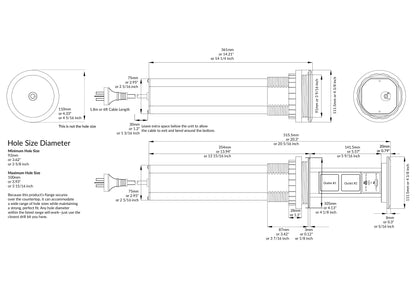

Sizing reference
Sizing reference for the V3CS
Quality guaranteed
Pop up power outlets are our bread and butter. We are here to help when needed.
Simple returns
Eligible returns are accepted within 30 days when the product is unused, undamaged and in resalable condition. View the returns policy.
Shipping information
Free shipping covers most U.S. addresses. Business-day orders normally dispatch within 24 hours; delivery is typically 3–7 days. View current shipping information.
Optional: added protection
Electrical protection requirements vary by location and installation. Check the applicable codes or ask a qualified professional. View the compatible GFCI adapter.
Dimensions and details
Specifications, support and common questions.
Electrical, installation, delivery and support information is consolidated here so it is easier to scan.
Specifications
Electrical
110V AC, 50–60Hz; 15A and 1,650W total maximum. Operating range: 32–104°F (0–40°C).
Charging
USB-A: 5V/2A (up to 10W). USB-C: 5V/3A (up to 15W). Qi wireless charging: up to 10W.
Construction and protection
Silver top and body with black outlet and charger faces; PVC, ABS and aluminum. The fully closed lid helps resist incidental surface splashes; it is not waterproof. 24-month warranty.
Installation opening
Opening: 3.74 in. ±0.20 in. (95 ±5 mm; acceptable range 3.54–3.94 in. / 90–100 mm). Confirm countertop thickness and below-counter clearance before cutting.
Delivery, warranty and support
V3CS-US technical sheet
Use the exact regional model information when planning a new or replacement opening.
Warranty and product support
Includes a 24-month warranty, with product and installation support available before and after purchase.
Shipping information
Free shipping covers most U.S. addresses. Business-day orders normally dispatch within 24 hours; delivery is typically 3–7 days. View current shipping information.
Frequently asked questions
How does the V3CS open and close?
Press and hold the top control until it lights, then press it once to raise or retract the unit. The sleep function helps reduce accidental activation.
What opening is required, and can it replace an older pop-up?
Plan a 3.74 in. opening with a ±0.20 in. tolerance (95 ±5 mm; 3.54–3.94 in. / 90–100 mm acceptable range). It may replace an older unit when the opening, countertop thickness and below-counter clearance suit the current V3 dimensions; measure the installation rather than relying on the old model name.
Does installation require an electrician?
No hardwiring is required for normal installation because the unit has a fitted US plug. Any electrical alteration must follow local requirements and be completed by a qualified electrician.
Is the V3CS waterproof?
No. When fully closed, the lid closes over the opening and helps resist incidental surface splashes. It is not waterproof. Keep it dry, wipe up liquid promptly, and do not open or use it while wet.
Can the supplied cord be cut for hardwiring?
Do not cut or modify the fitted cord. If the installation requires electrical alteration, consult a qualified electrician and follow local requirements.
Does wireless charging work with iPhone and Android?
Yes. Compatible Qi-enabled Apple, Samsung and other Android phones can charge on the top. Center the phone and remove a thick case if charging is inconsistent.
Why can I hear a faint hum while wireless charging?
The wireless charger contains a cooling fan. A faint hum can be normal while charging, and the fan may continue briefly after the phone is removed. Seek support if it becomes unusually loud or charging is unreliable.
What happens if the lift is obstructed?
The protection system pauses or briefly reverses the lift when it meets an obstruction. Clear the obstruction, then use the top control again.
What warranty is included?
A 24-month warranty is included. Modern Power Solutions provides product support and can assist with eligible warranty claims.
