Power and charging
Two tamper-resistant US outlets, one USB-A port, one USB-C port and wireless charging.
Product guide

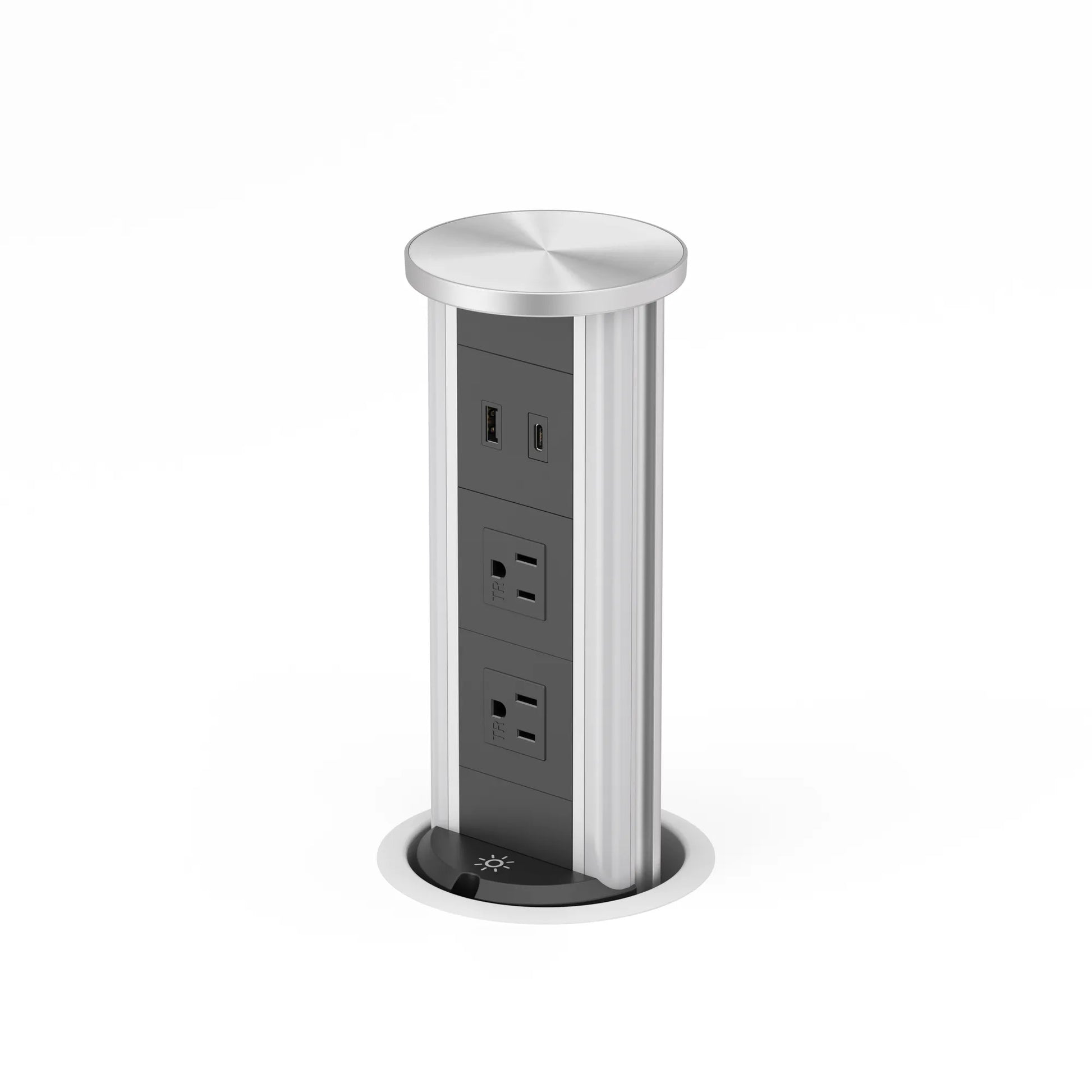

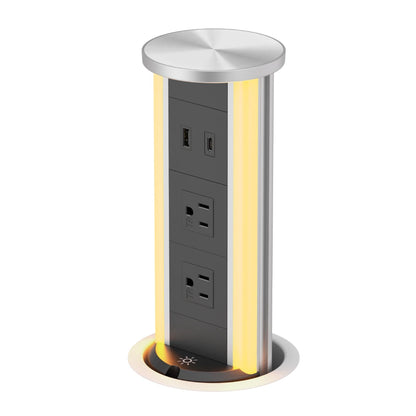

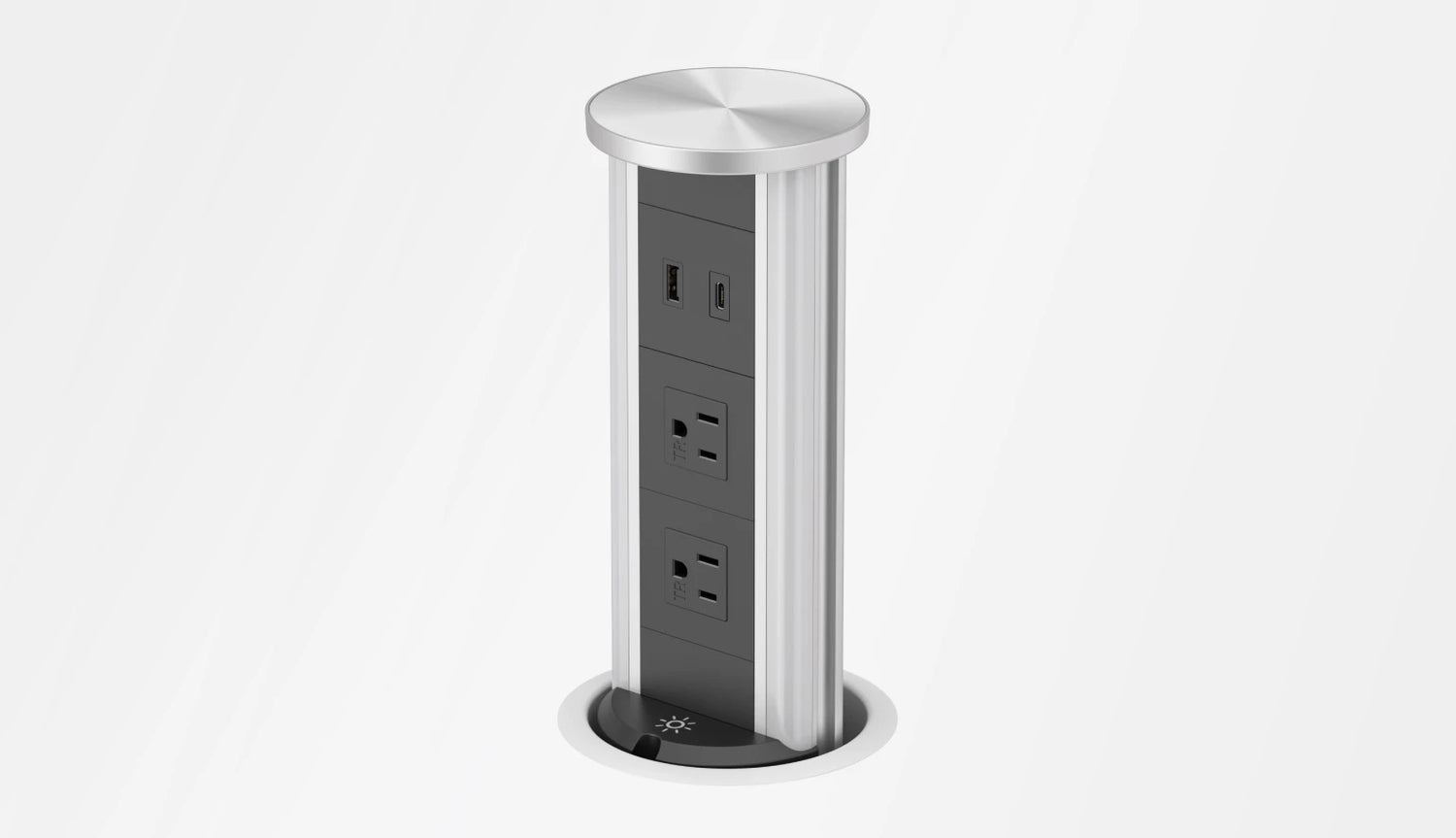

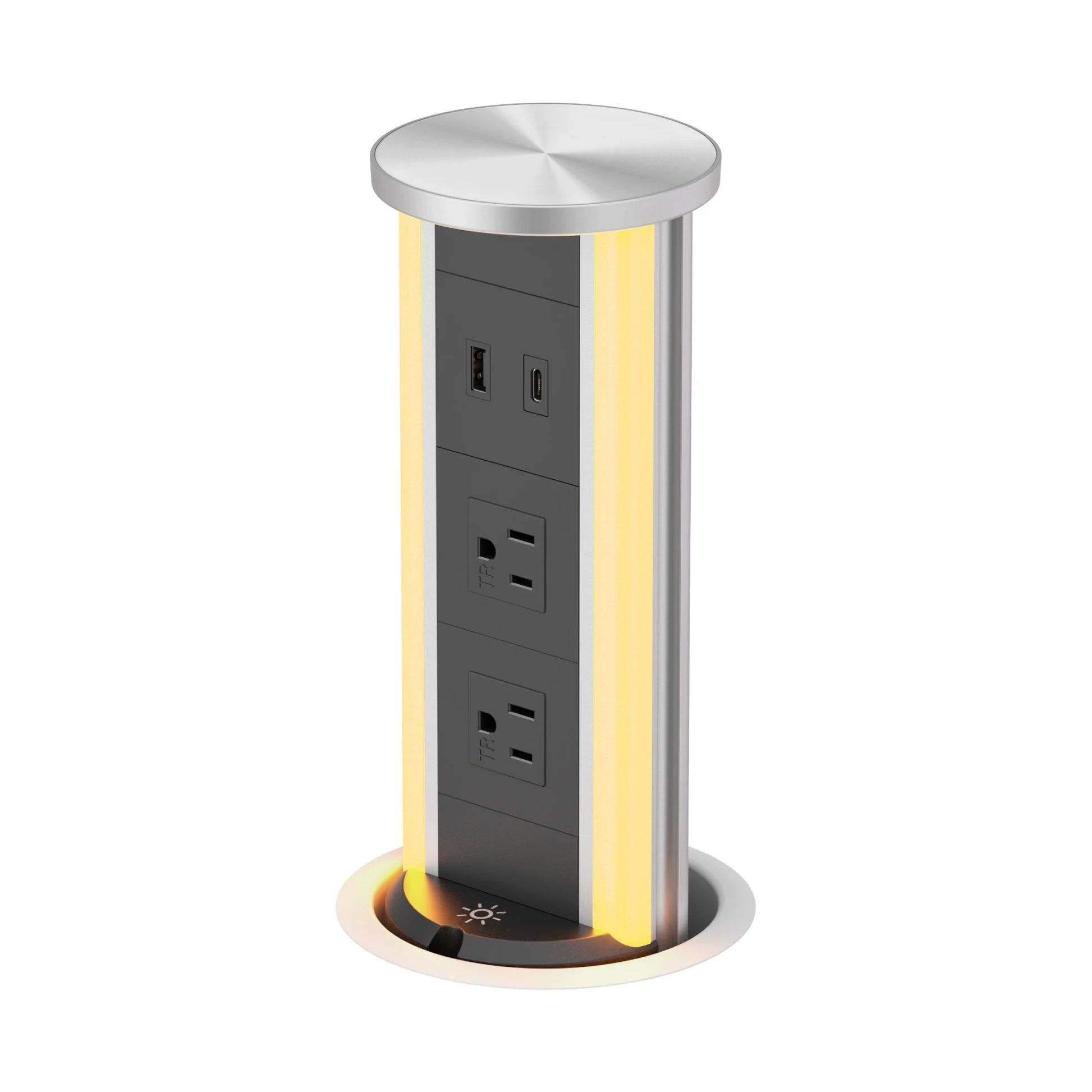

Silver gas-strut pop-up unit with two tamper-resistant US outlets, USB-A, USB-C up to 65W, wireless charging up to 10W and a dimmable warm-white light.
Features

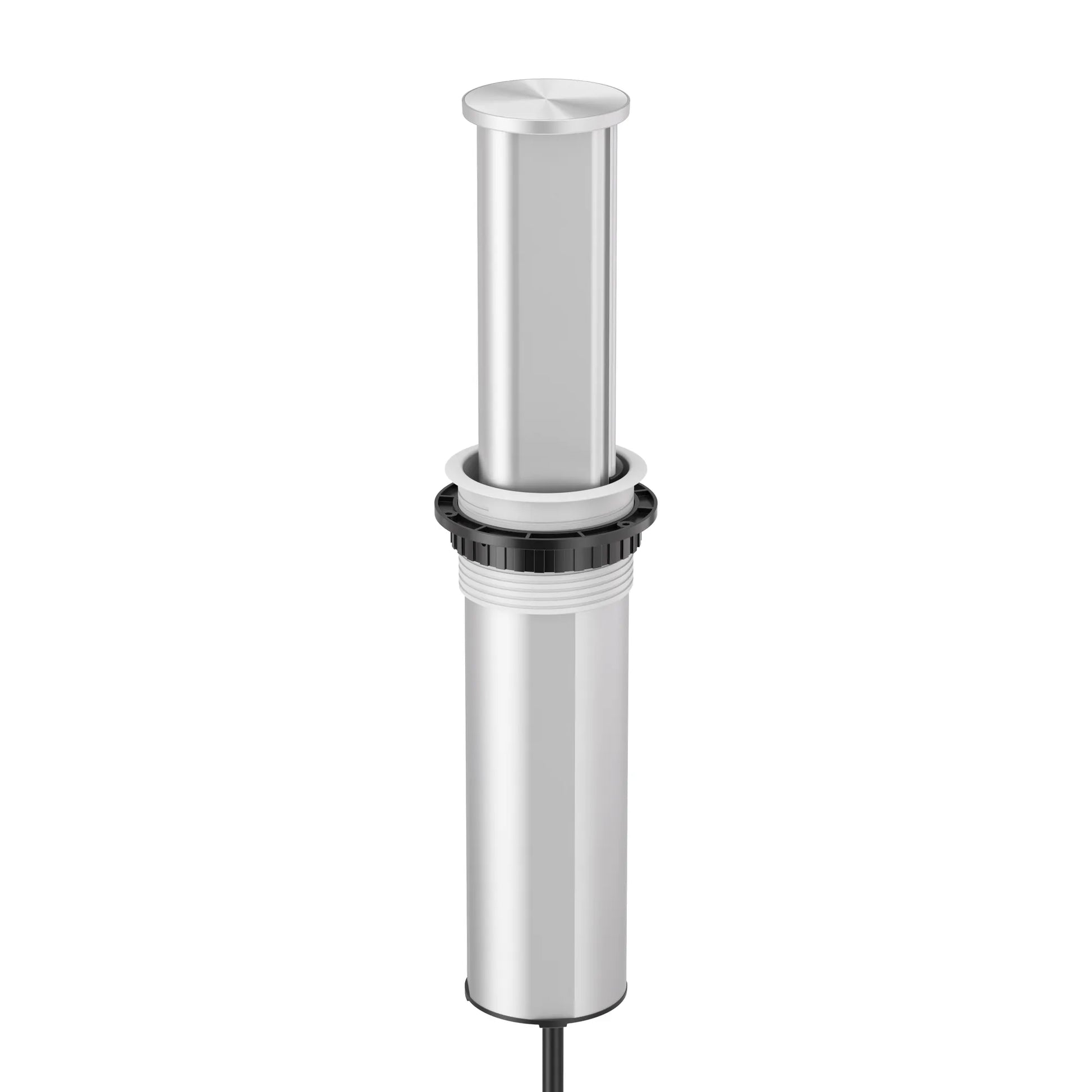

Gas-strut lift

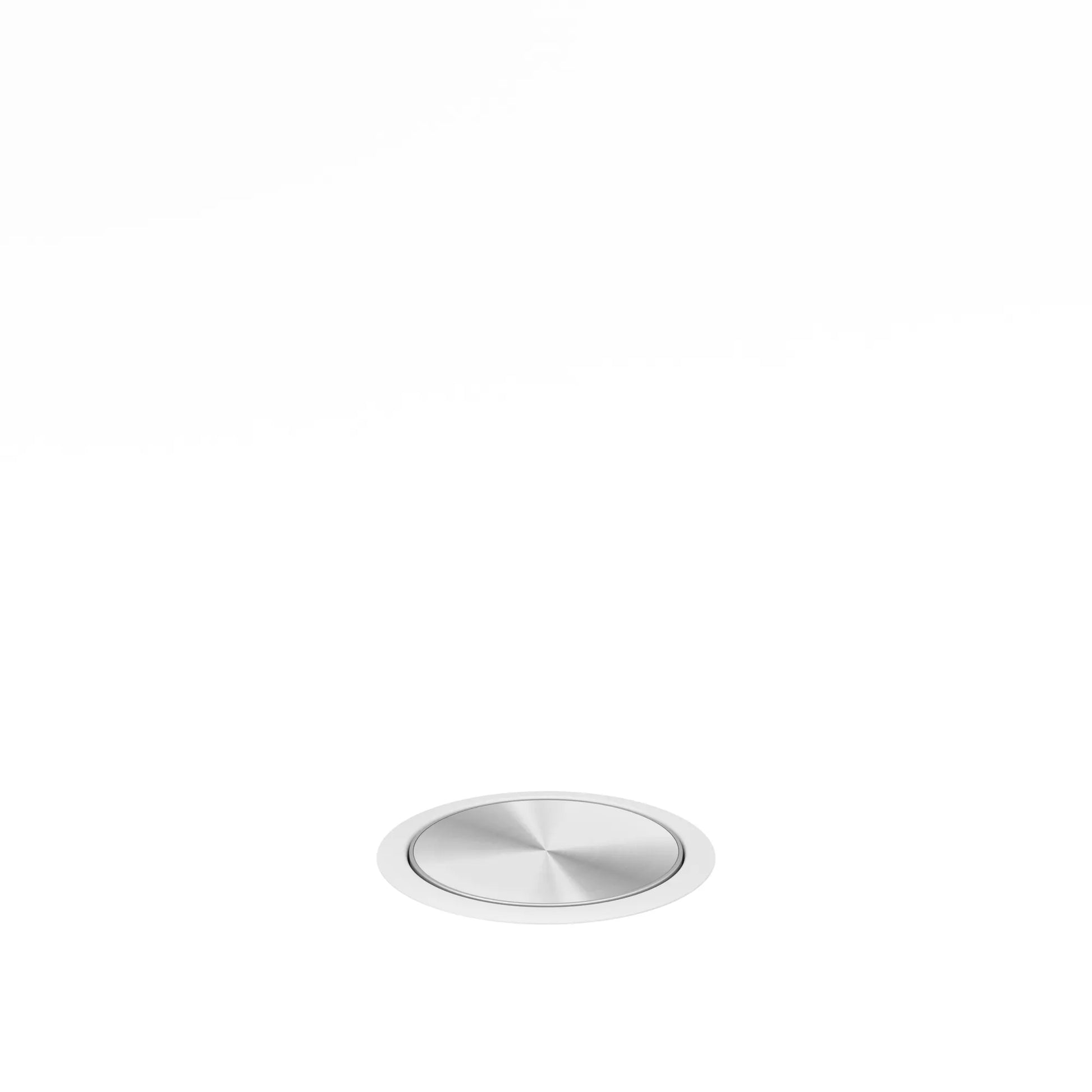

Press to release the unit; push it down to retract it.
Dimmable light
Integrated warm-white LED with touch dimming.
Installation planning
Installation opening
Fits 95–105 mm openings. 100 mm (4 in.) recommended.
Below-surface space
Allow at least 350 mm (13.8 in.) clear space below.
Important: IP20 for indoor, dry-location use only. Do not exceed 15A / 1,875W total and do not cut or alter the fitted cord.
Specifications
Electrical
125V AC, 60Hz; 15A / 1,875W maximum total load.
Charging
USB-A up to 30W; USB-C up to 65W; together 30W + 30W maximum; wireless charging up to 10W.
Compliance
ETL Listed for the US and Canada to UL 962A and CSA C22.2 No. 308; Control No. 4008355.

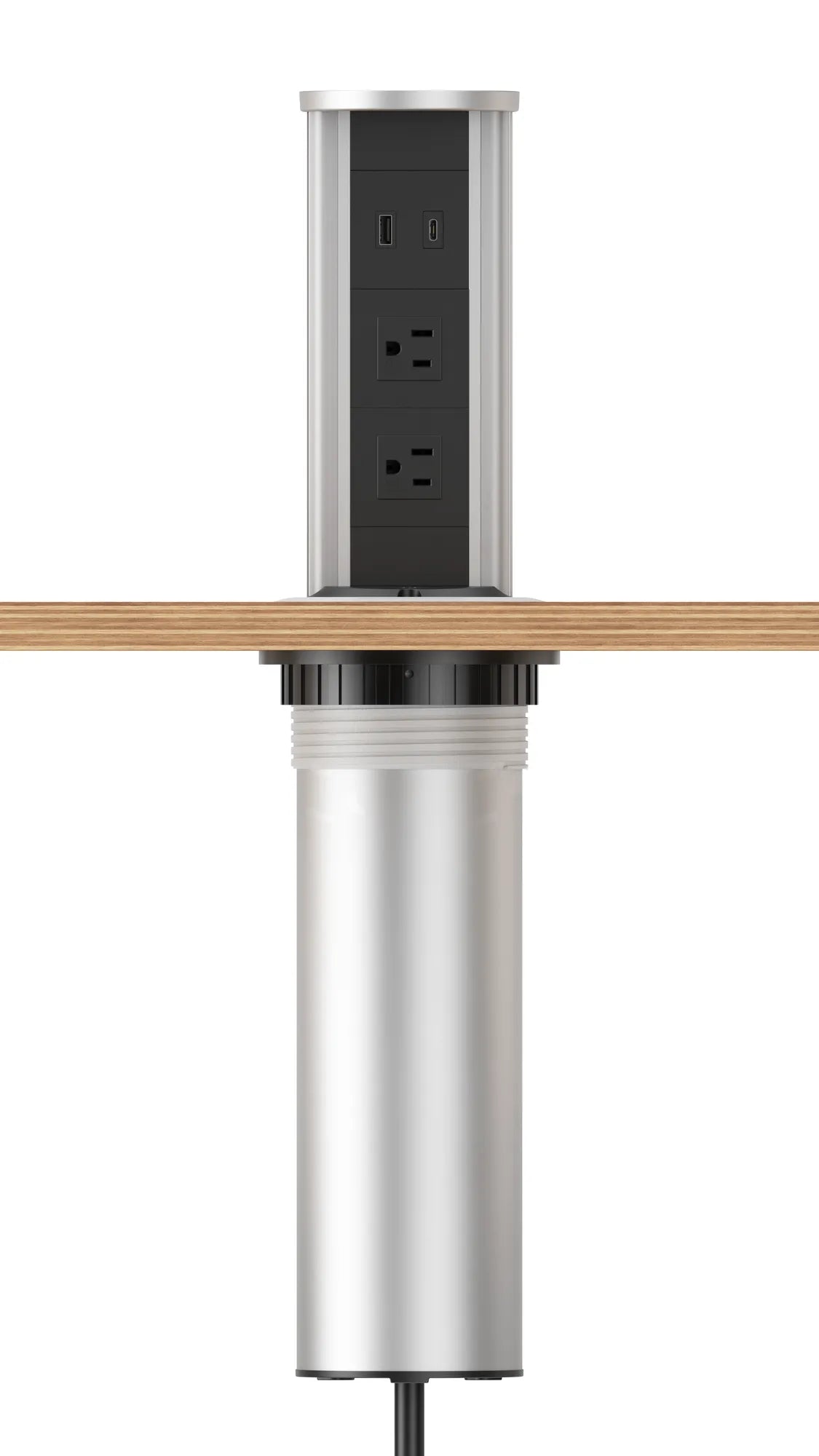

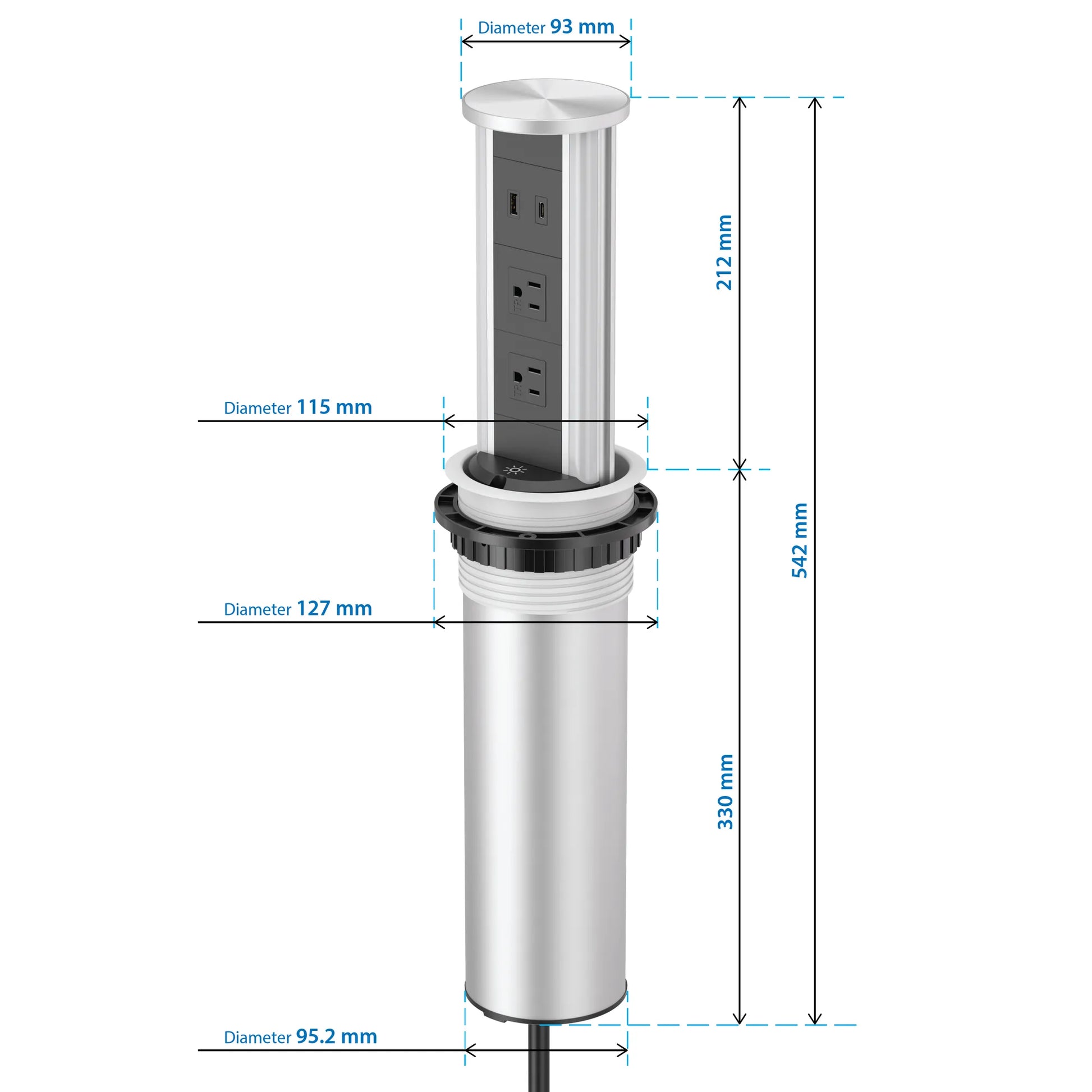

Installation dimensions

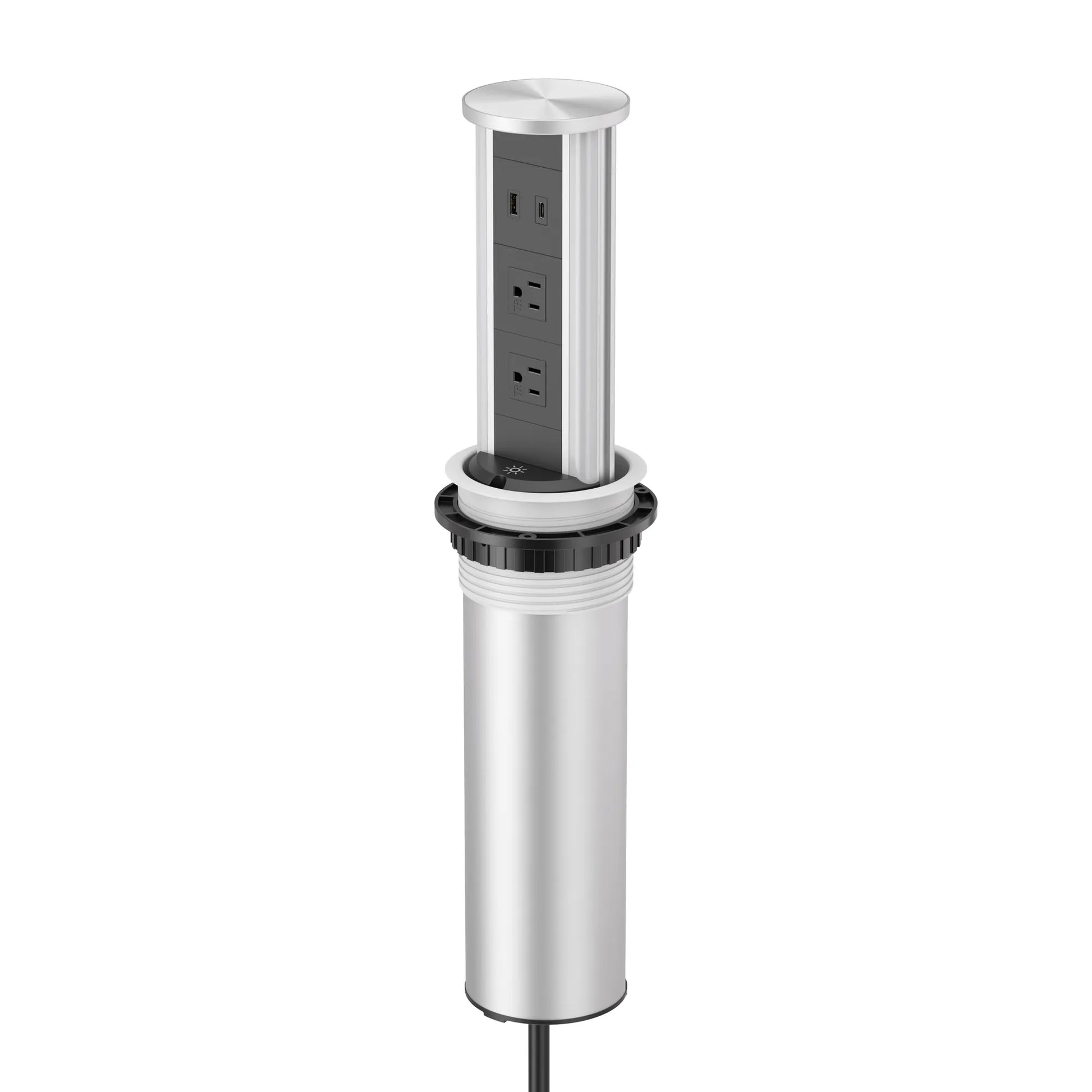

Opening: 95–105 mm; a 100 mm or 4 in. (101.6 mm) opening is recommended. Body: 95.2 mm diameter. Top flange: 115 mm. Locking ring: 127 mm. Body below surface: 330 mm. Allow at least 350 mm (13.8 in.) clear space below.
Downloads and support
Technical sheet
Current dimensions, ratings and installation information for V16S-US.
Download PDF →
Warranty and support
Includes a 24-month warranty with local servicing. Warranty claims can be submitted online.
Get product support →
Returns
Returns are accepted within 30 days when the product is undamaged and in good condition. A 10% restocking fee applies; exchanges within 30 days have no restocking fee.
Read returns policy →
Frequently asked questions
What electrical load can I connect?
The total connected load must not exceed 15A / 1,875W at 125V AC, 60Hz.
Can the fitted cord be cut for hardwiring?
No. Plug the fitted cord into a grounded receptacle and do not cut or alter it.
Can it be used in wet locations?
No. The IP20 unit is for indoor, dry-location use only.
The difference between ordinary and extraordinary is that little extra
Flexible installation opening
Fits 95–105 mm openings; a 100 mm or 4 in. (101.6 mm) opening is recommended.

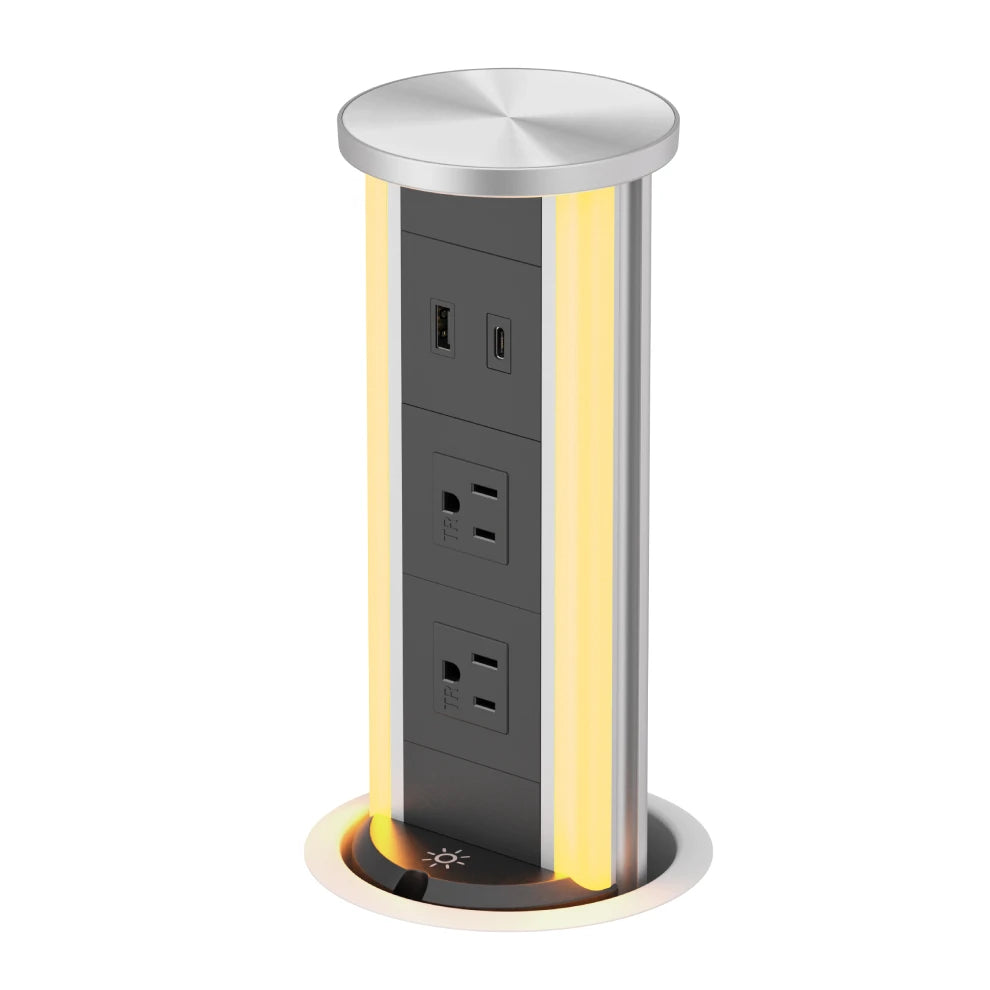

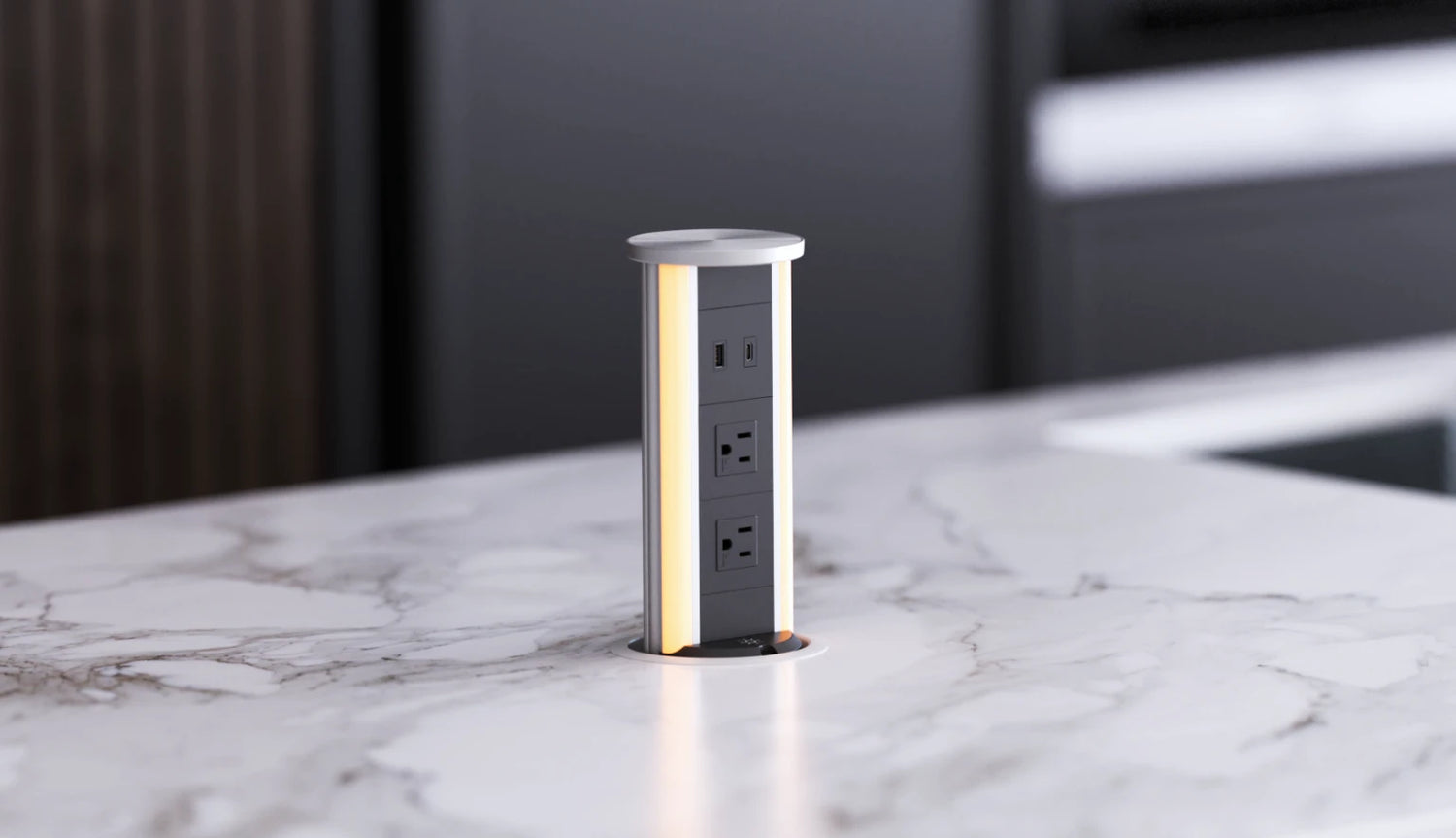

Integrated LED lighting
A built-in warm LED light adds style and functionality, serving as a night light or premium accent feature.

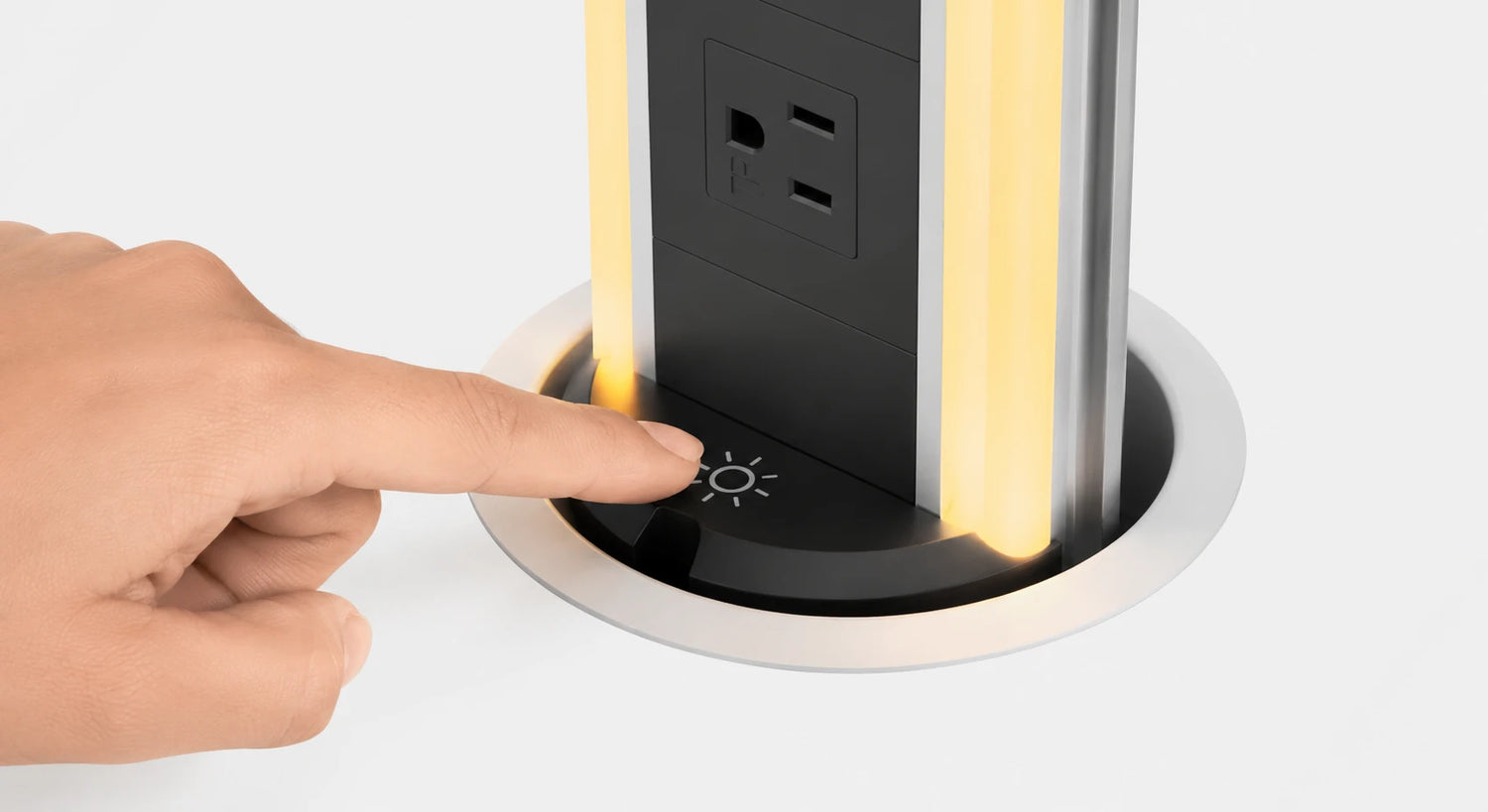

LED Light Control
Tap the light button to turn the LED light on or off. Press and hold to adjust the brightness to your preferred level.

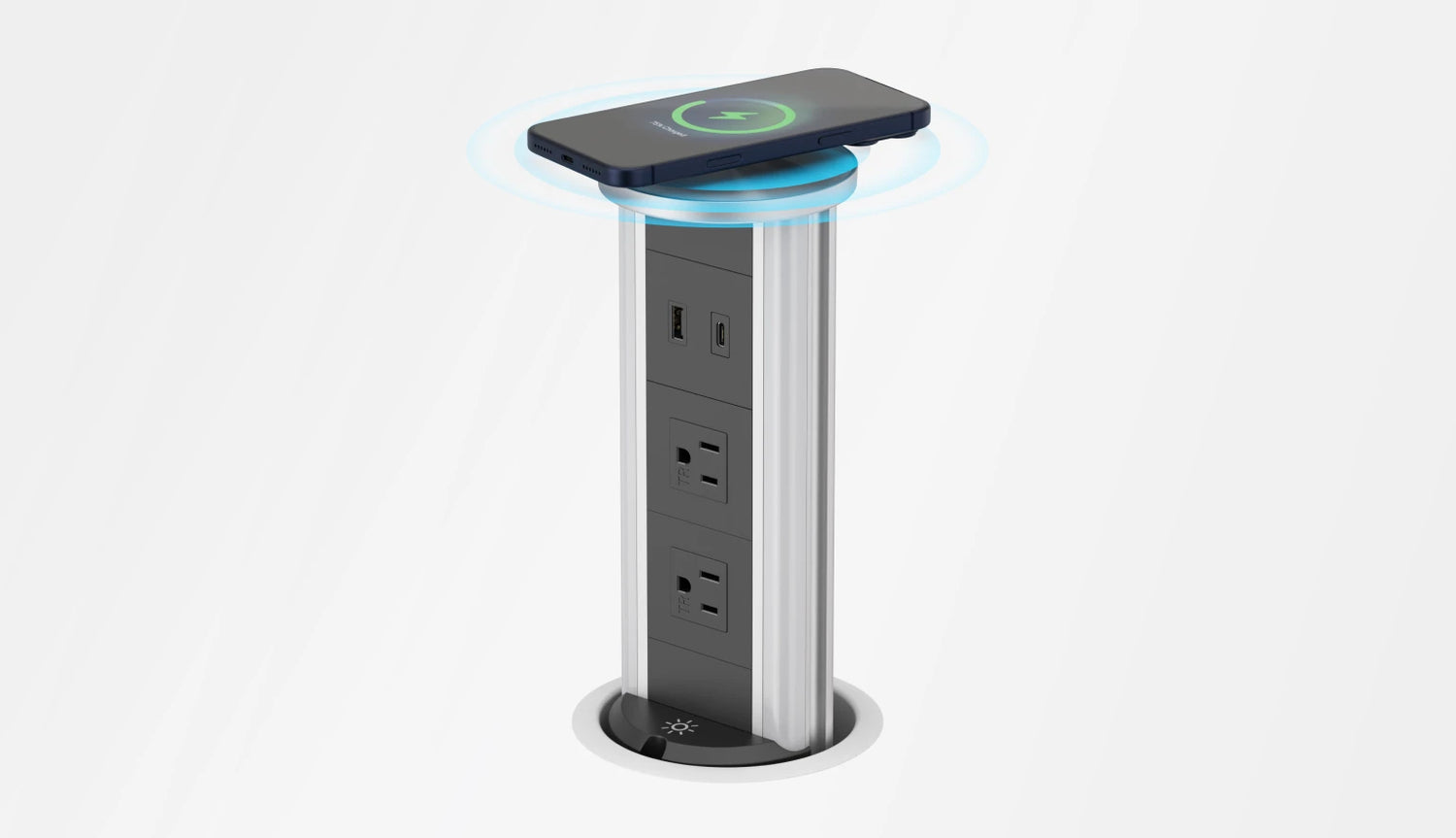

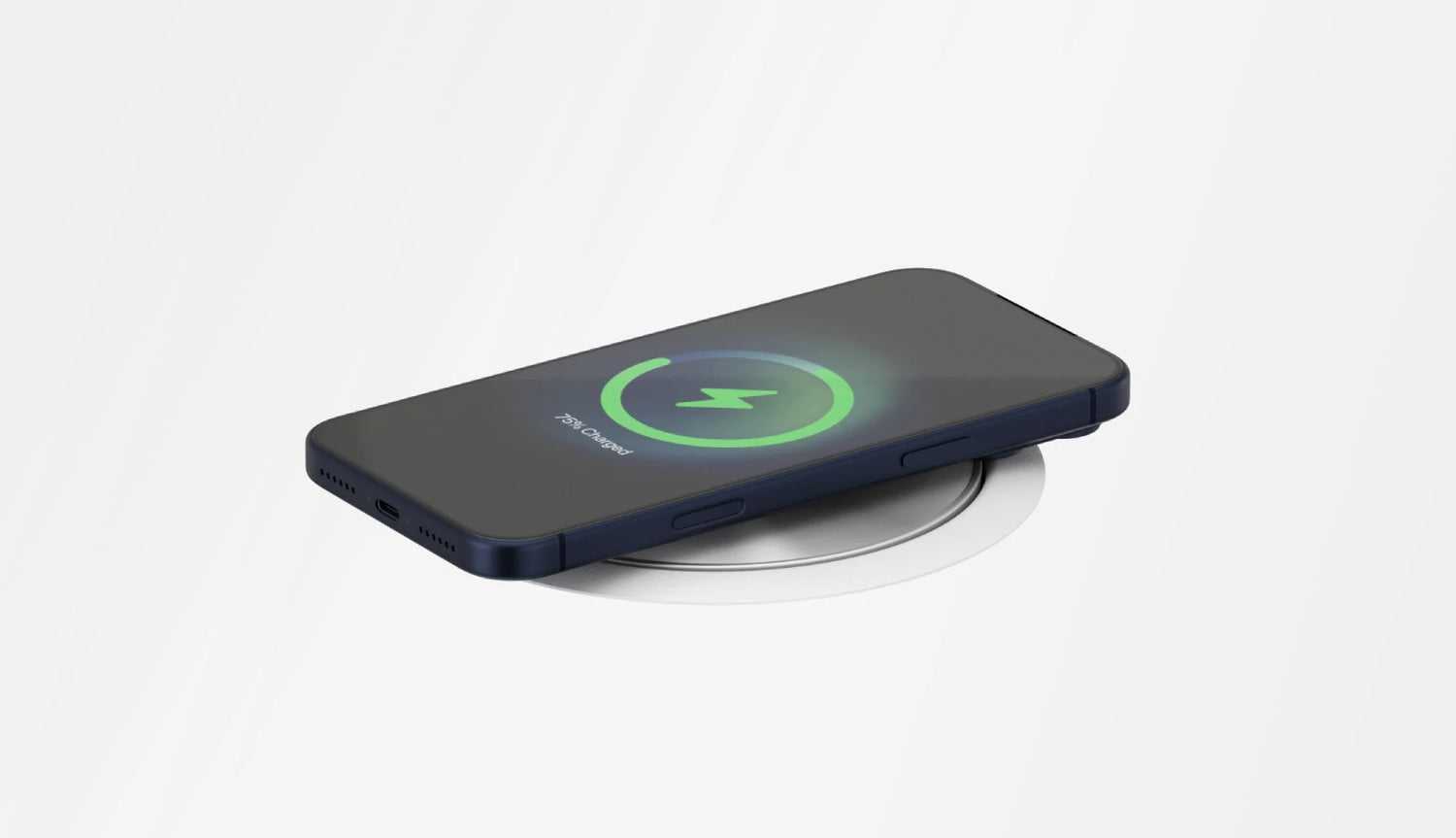

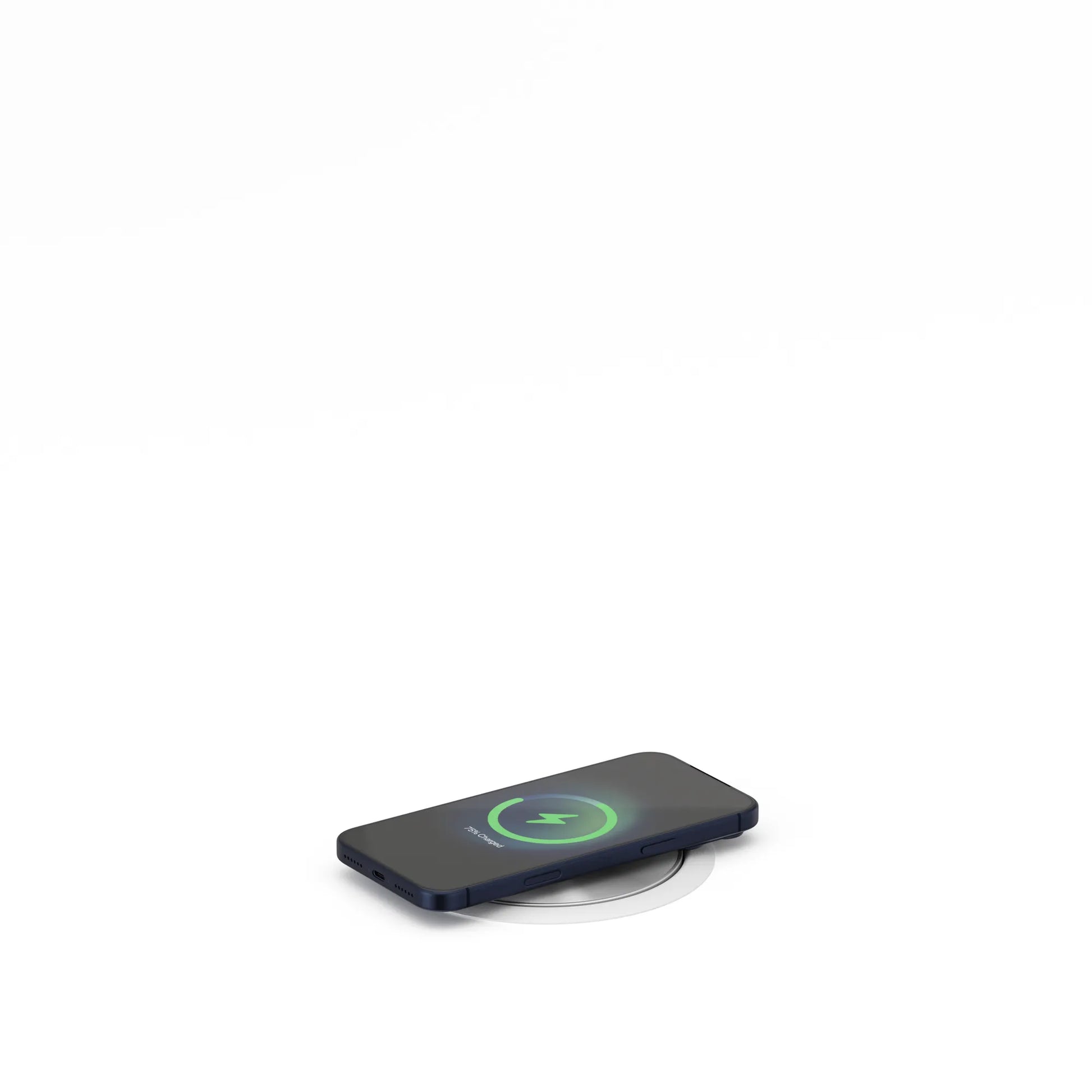

Wireless Charging
Place your mobile phone on the top to charge.

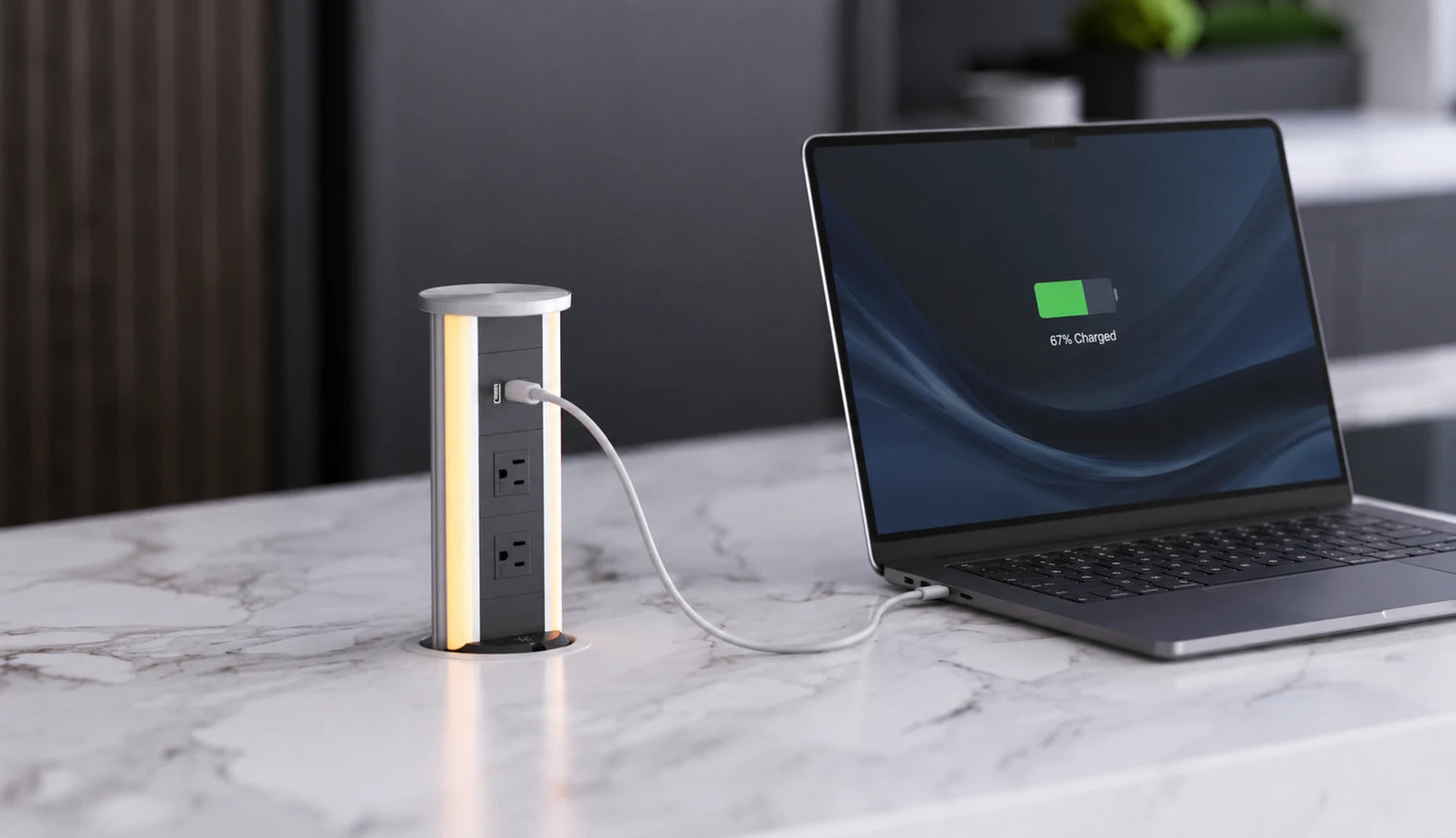

65W USB-C Charging
Charge laptops, tablets, and smartphones directly with the integrated 65W USB-C fast charging port. No bulky power adapters required.
Wireless Charging In Any Position
The built-in wireless charger remains fully functional in every position - up, down, open, or retracted.

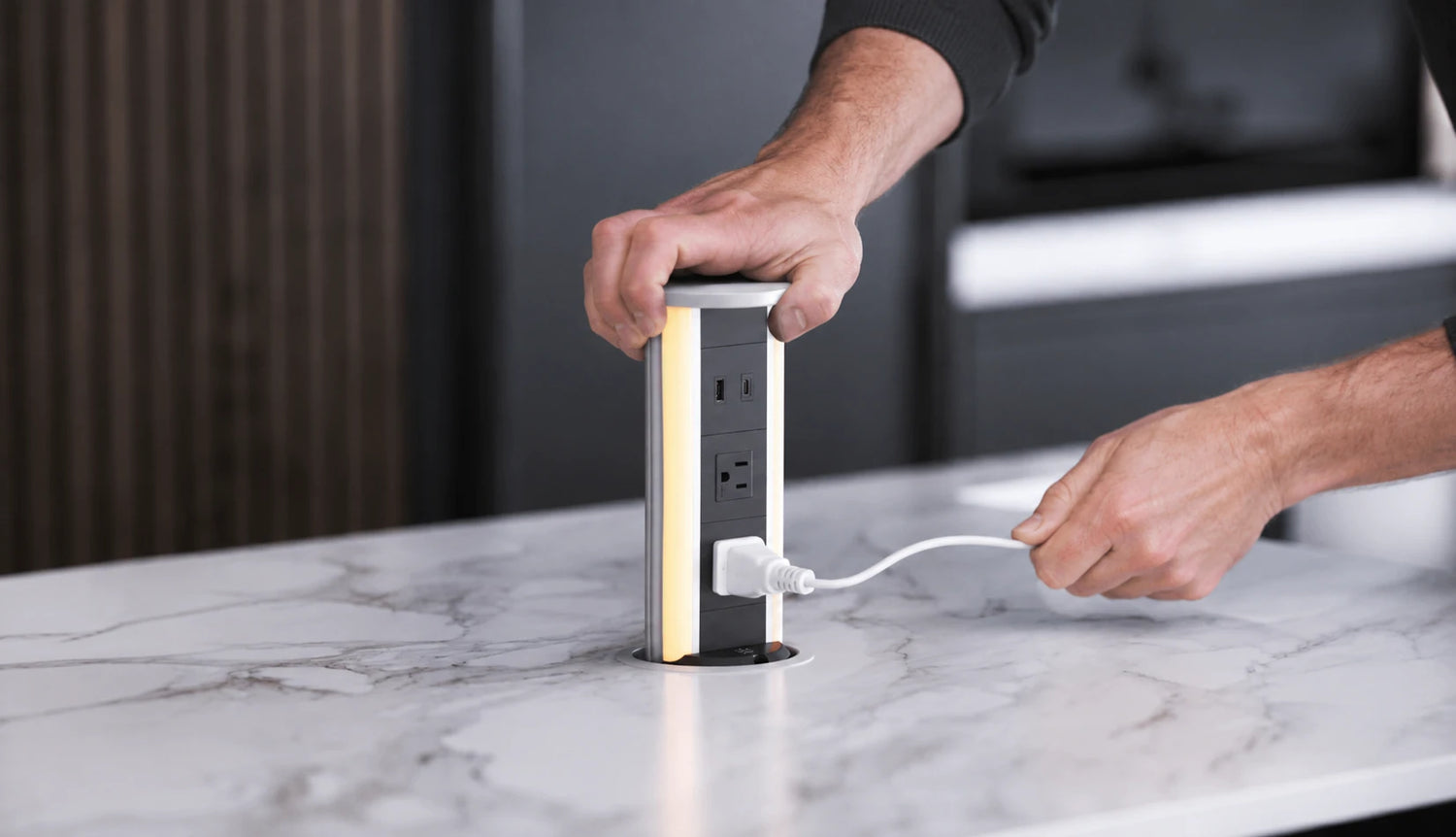

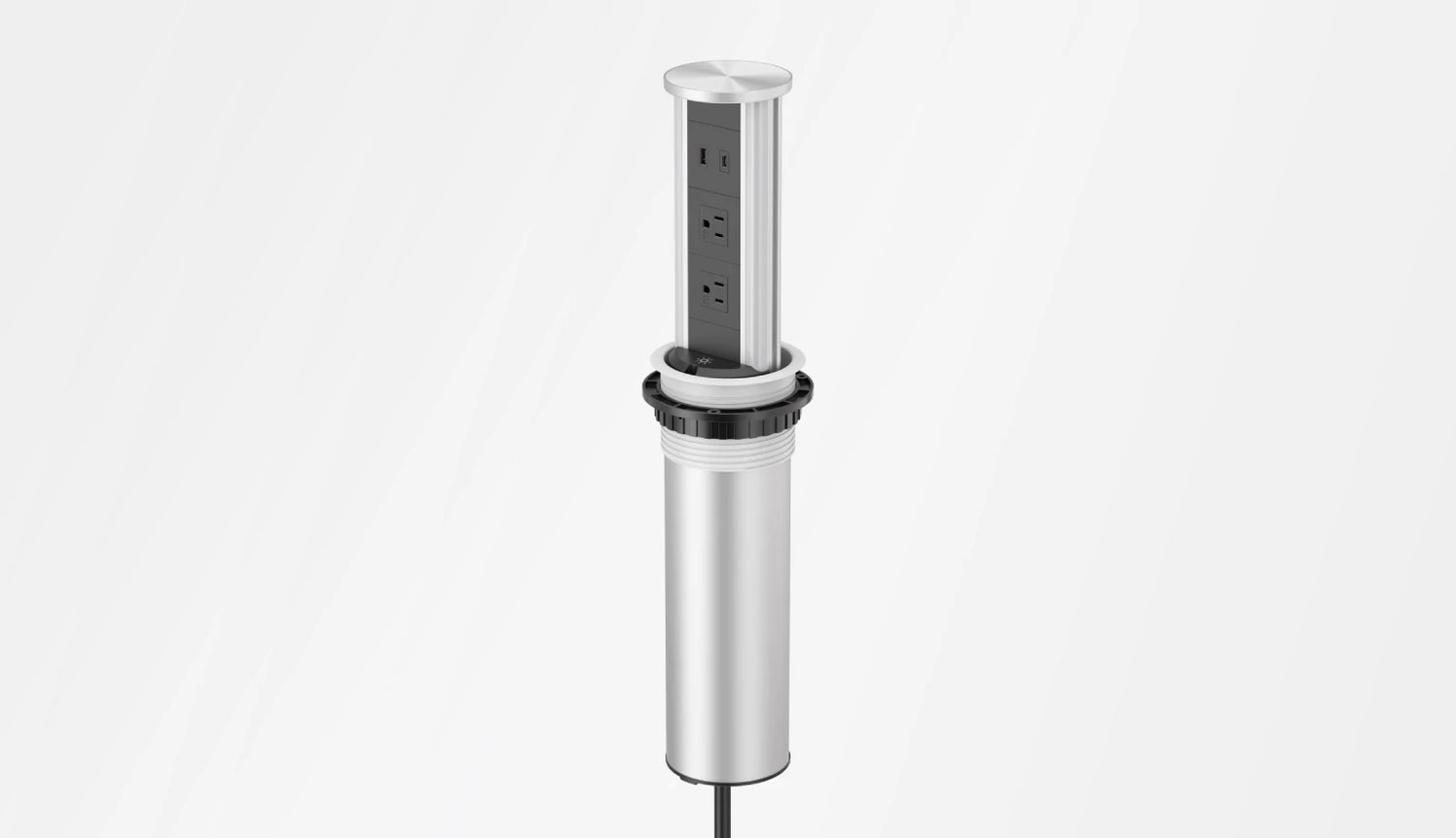

Stable when raised
The extended body is designed to remain stable during normal everyday use.

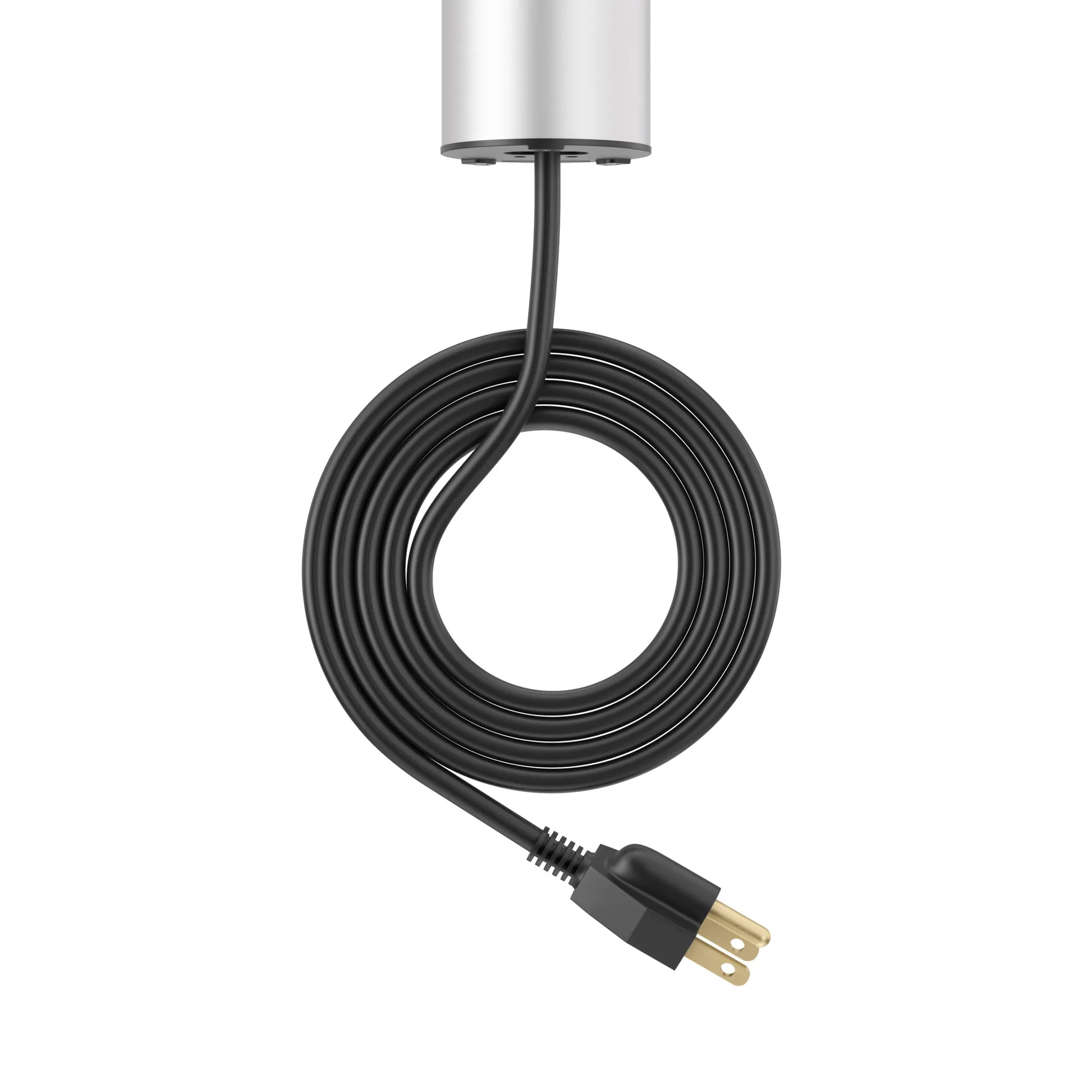

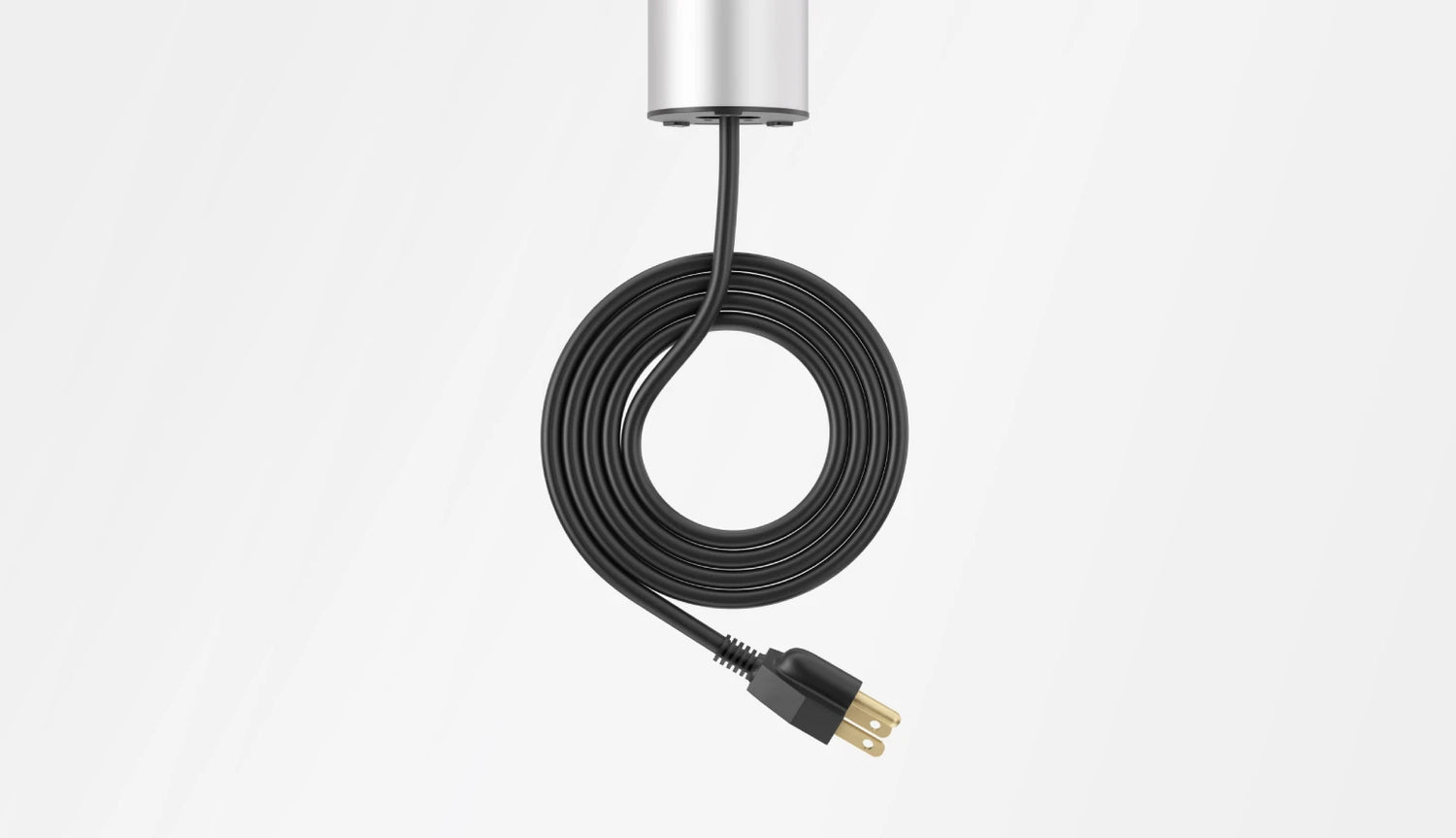

Plug and Play
An approximately 5 ft fitted cable plugs into a standard grounded US receptacle. Do not cut or alter the fitted cord.
Elegant Design, High Quality Build
Constructed with an extruded aluminium body.
The Most Intuitive Design

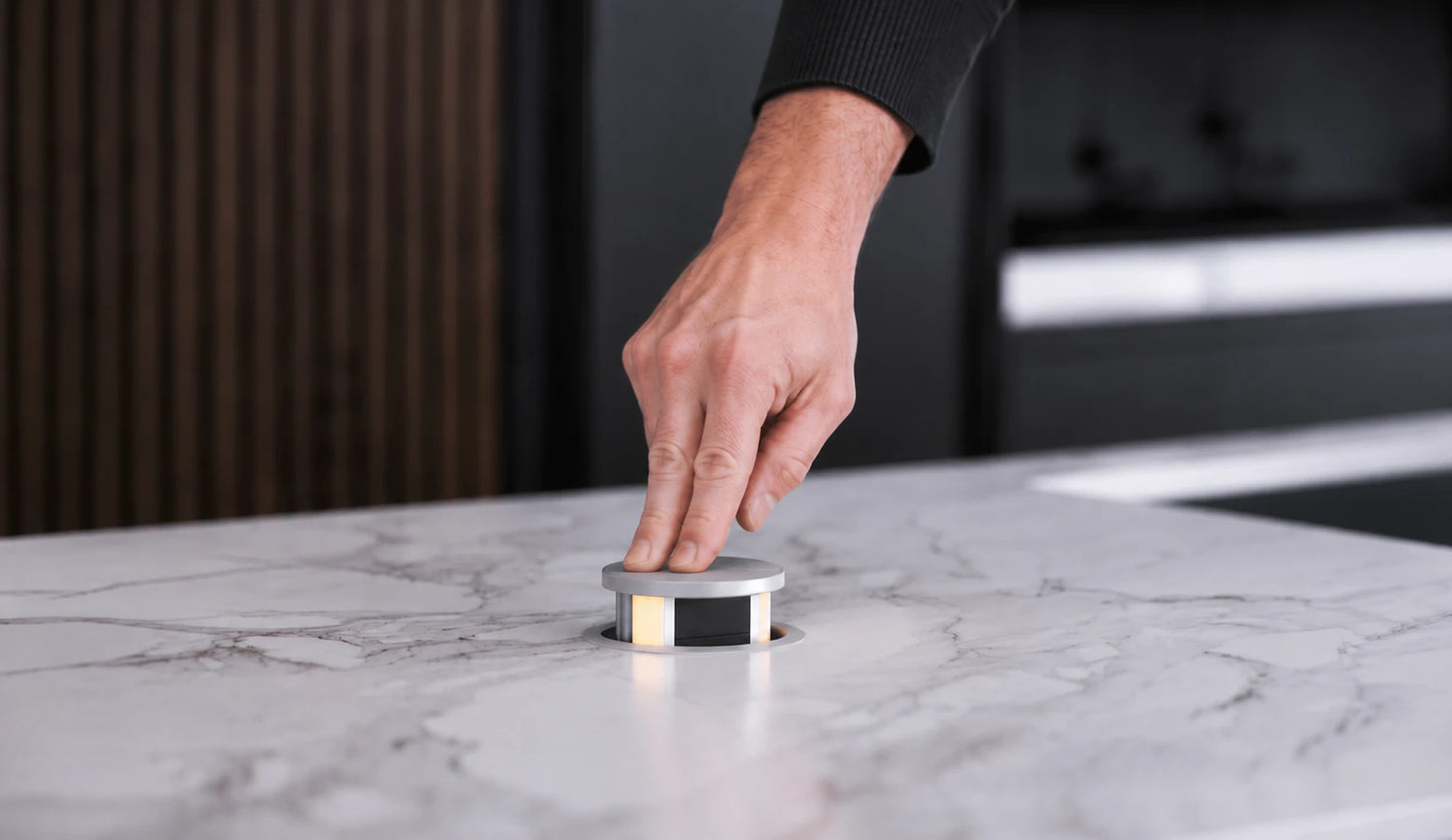

Push down to release, then watch it rise smoothly on its own.
Maximum output
15A, 125V AC, 60Hz and 1,875W maximum total load. USB-A up to 30W, USB-C up to 65W, and wireless charging up to 10W.
Designed with Safety in Mind
Indoor, dry-location use only. Plug-in installation with a fitted US cord.

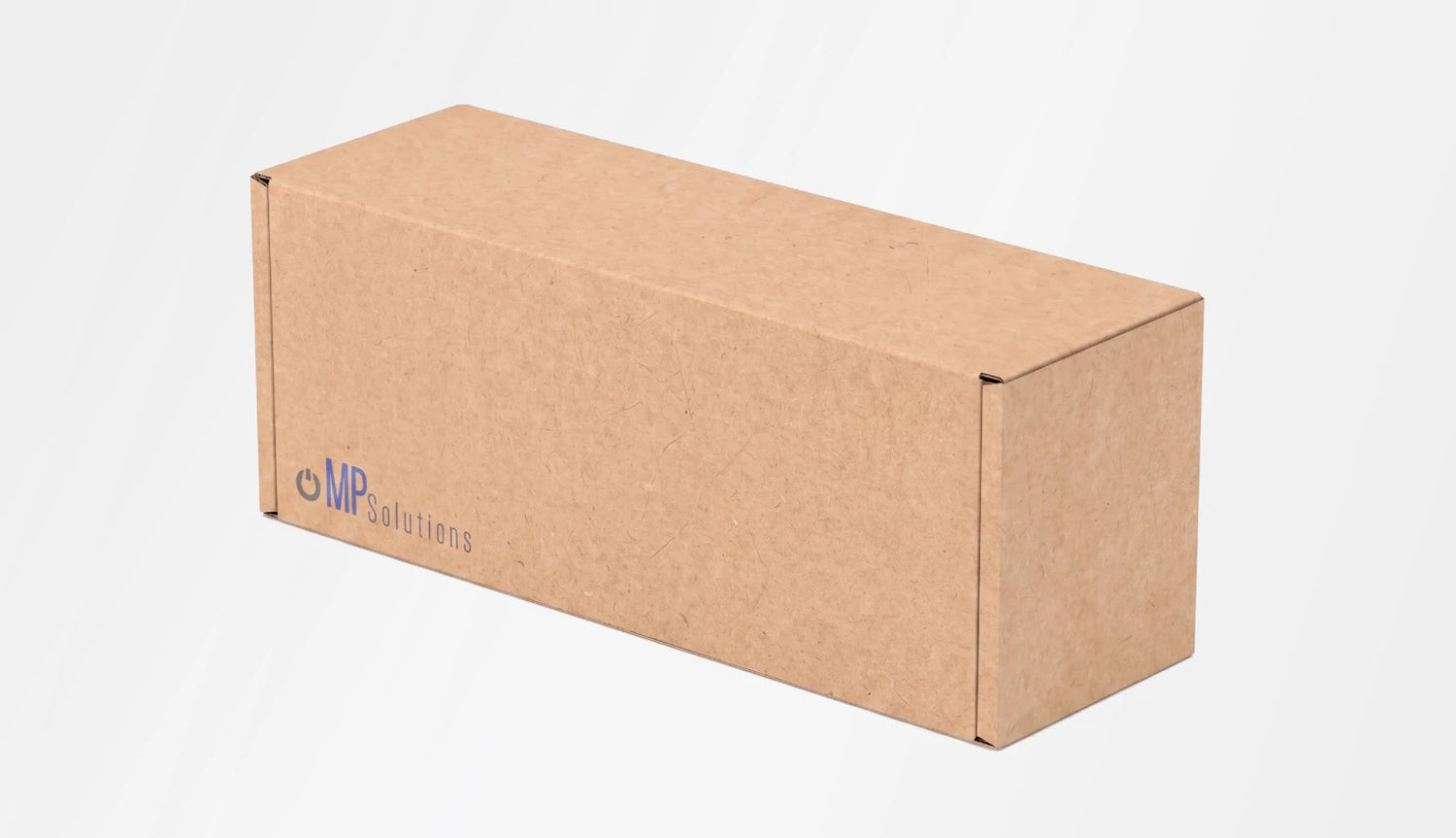

Protective Packaging
Designed to protect during shipping and storage. Each unit arrives in a durable carton that helps ensure it reaches you in perfect condition.
Current technical sheet
Download current dimensions, ratings and installation information for V16S-US.
Warranty and support
Includes a 24-month warranty with local servicing. Warranty claims can be submitted online. Submit a claim or support request.
Returns information
Returns are accepted within 30 days when the product is undamaged and in good condition. A 10% restocking fee applies; exchanges within 30 days have no restocking fee. Read full conditions.
Shipping information
Free shipping covers most US addresses. Business-day orders normally dispatch within 24 hours; delivery is typically 3–7 days. View shipping details.
GFCI protection
Install on a grounded circuit that meets local code. Where GFCI protection is required, it may be provided upstream or with a suitable adapter; confirm the installation with a qualified electrician. View the optional GFCI adapter.
