Power and charging
Two tamper-resistant US outlets, one USB-A port, one USB-C port and wireless charging.
V16B at a glance
Power, high-output charging and light in one gas-strut pop-up.

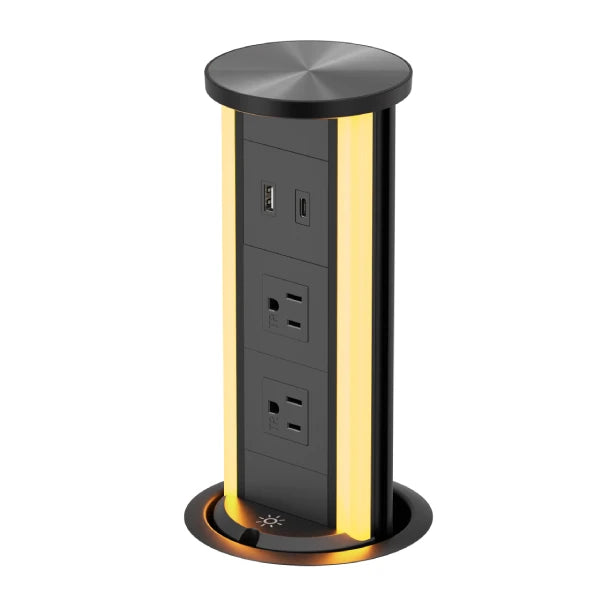

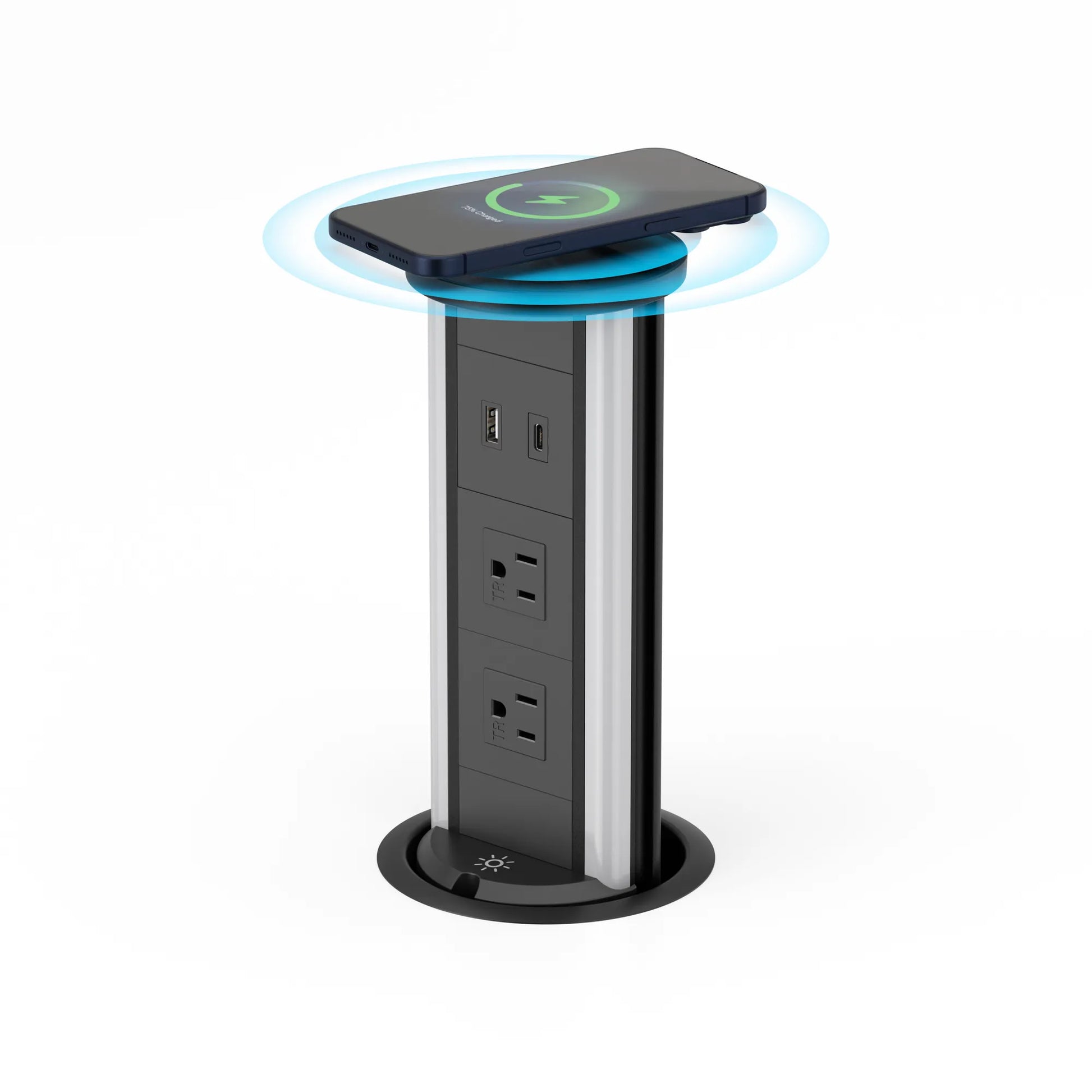

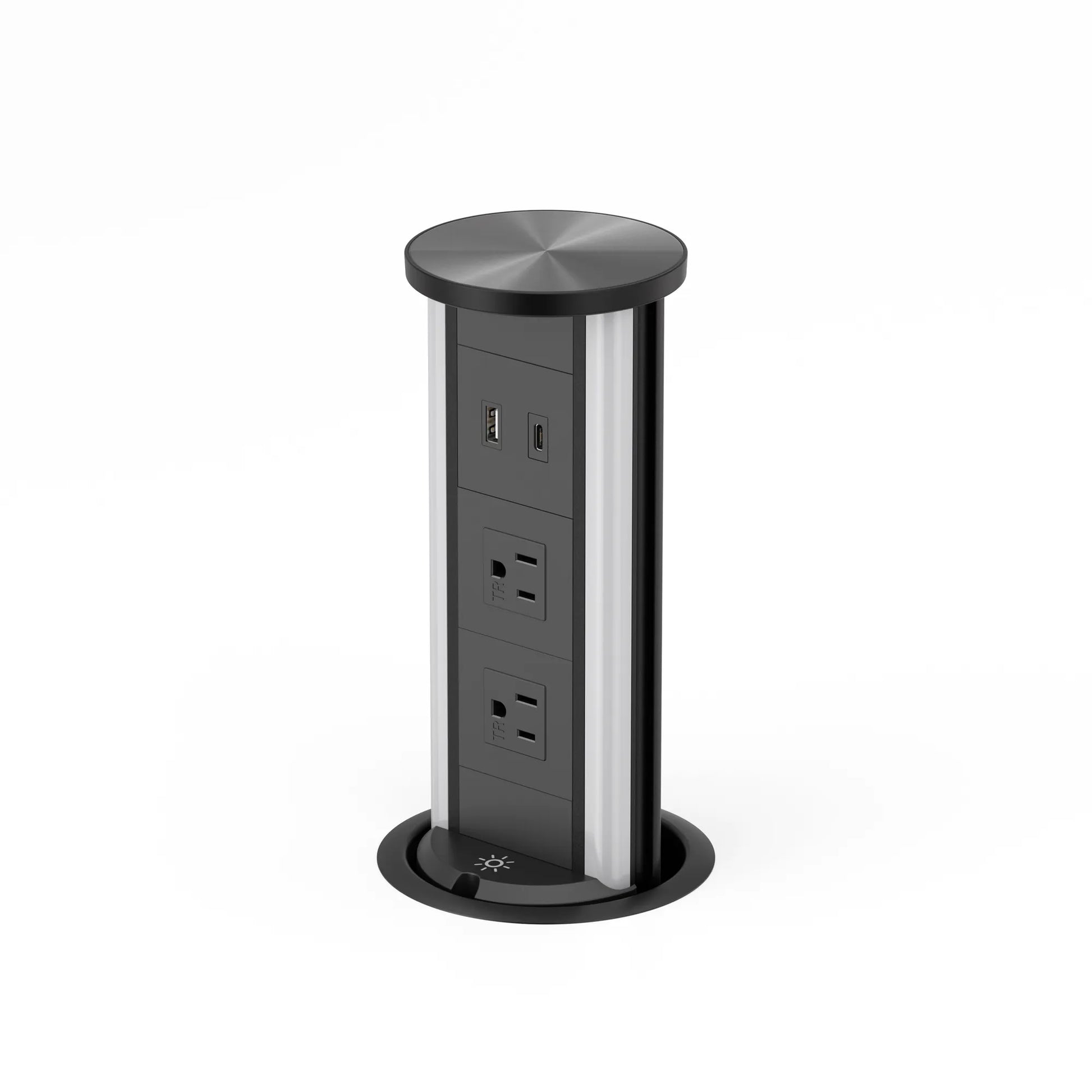

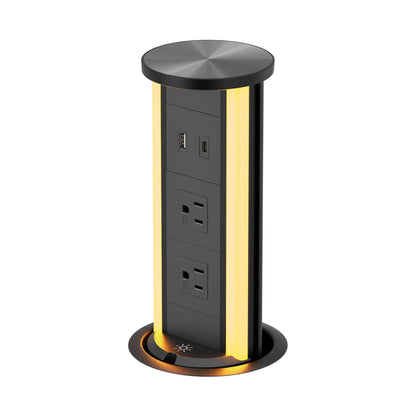

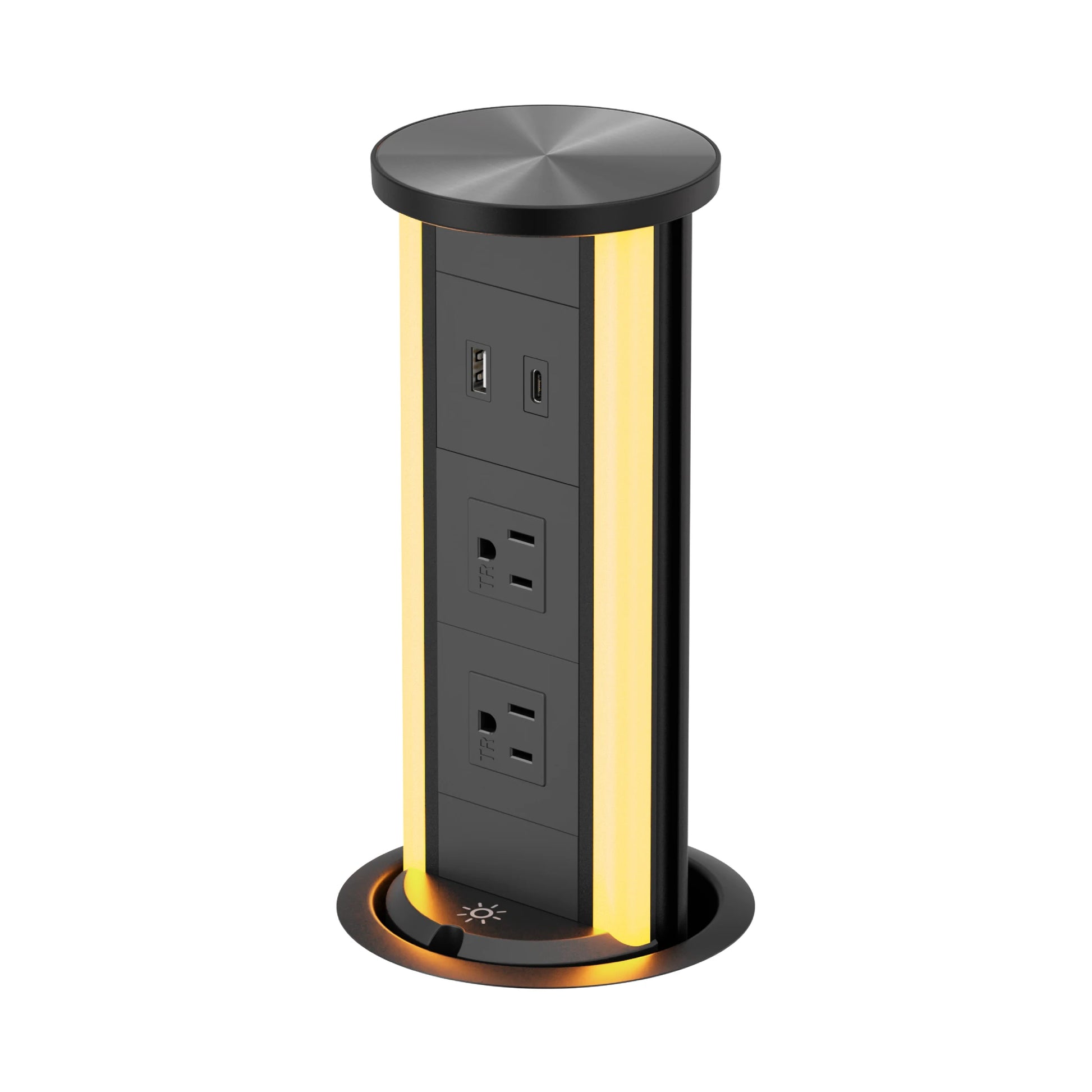

Black gas-strut pop-up unit with two tamper-resistant US outlets, USB-A, 65W USB-C, 10W wireless charging and a dimmable warm-white light.
Features
Gas-strut lift

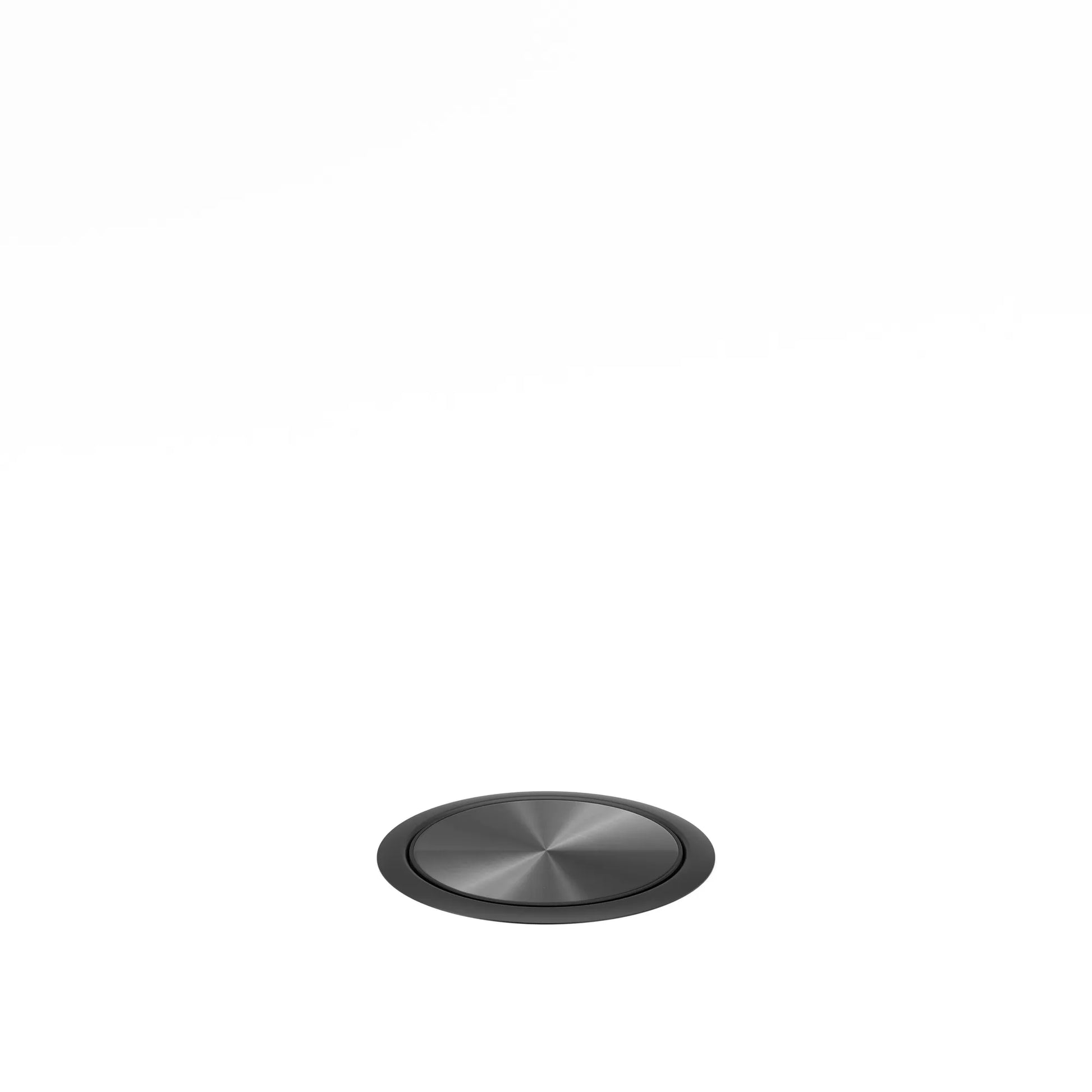

Press to release the unit; push it down to retract it.
Dimmable light
Integrated warm-white LED with touch dimming.
Installation planning
Installation opening
Fits 101–105 mm openings. 102 mm (4 in.) recommended.
Below-surface space
Allow at least 350 mm (13.8 in.) clear space below.
Important: IP20 for indoor, dry-location use only. Do not exceed 15A / 1,875W total and do not cut or alter the fitted cord.

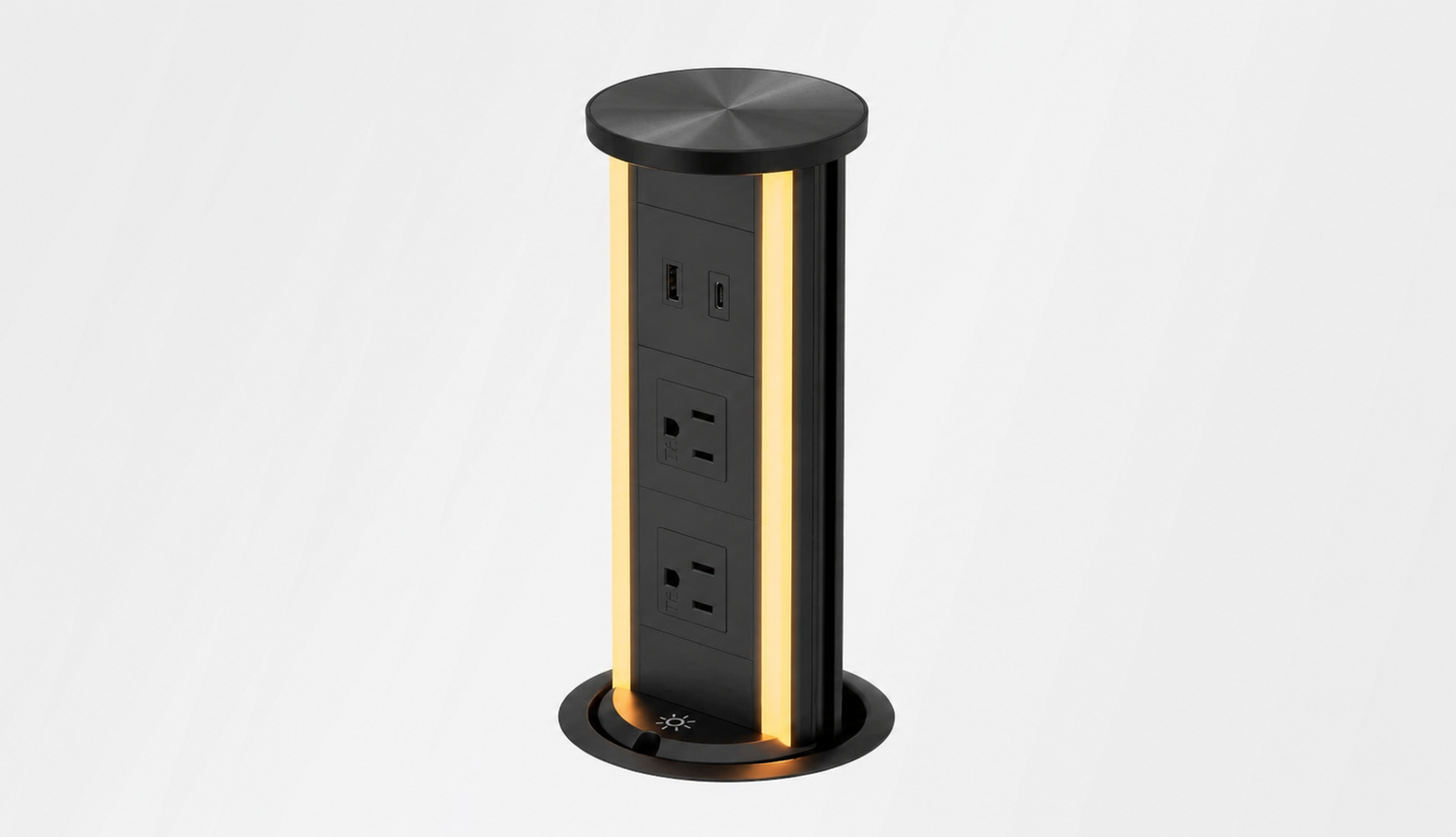

The difference between ordinary and extraordinary is that little extra
Flexible installation opening
Fits 101–105 mm openings; a 102 mm (4 in.) opening is recommended.

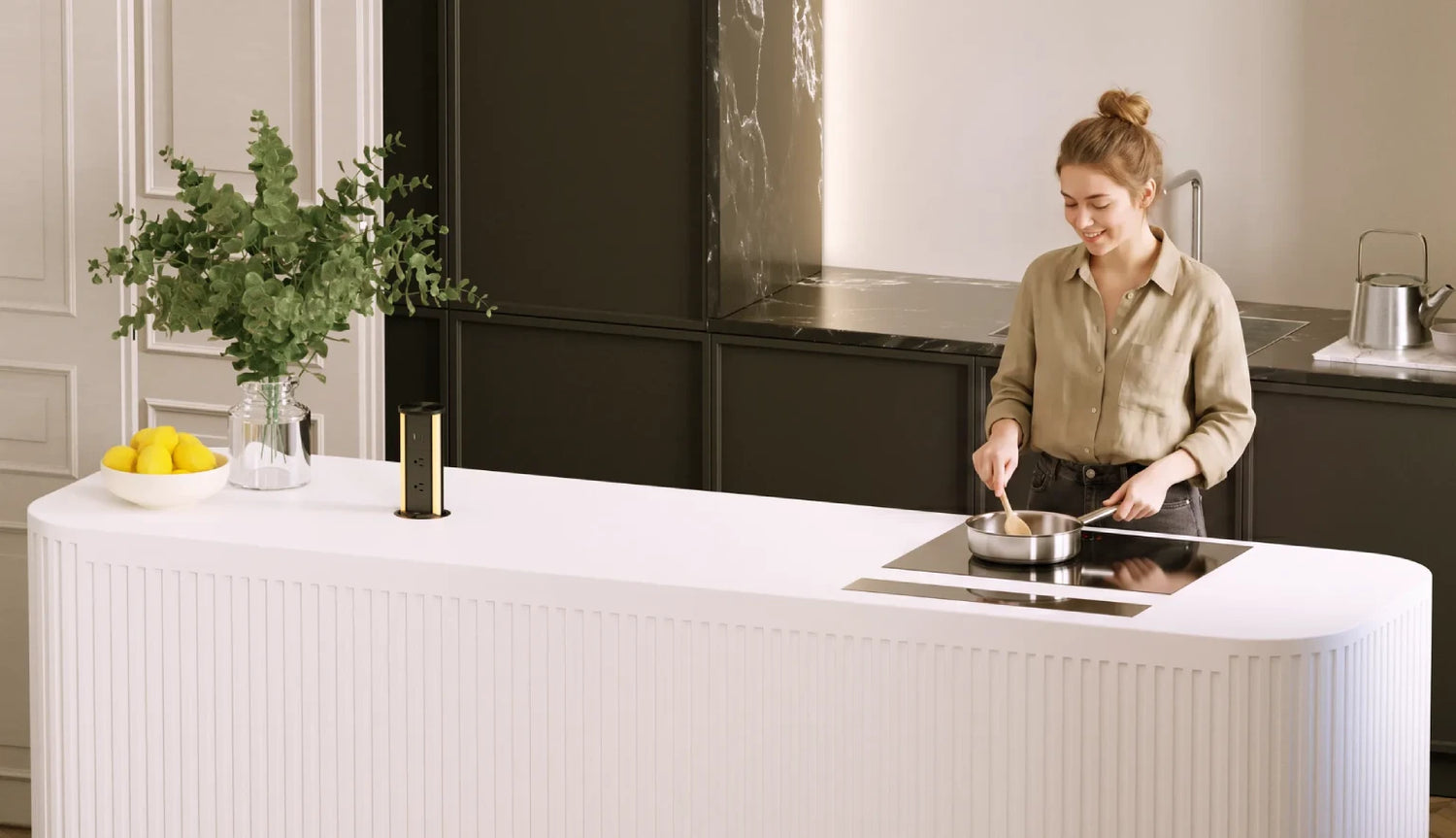

Integrated LED lighting
A built-in warm LED light adds style and functionality, serving as a night light or premium accent feature.

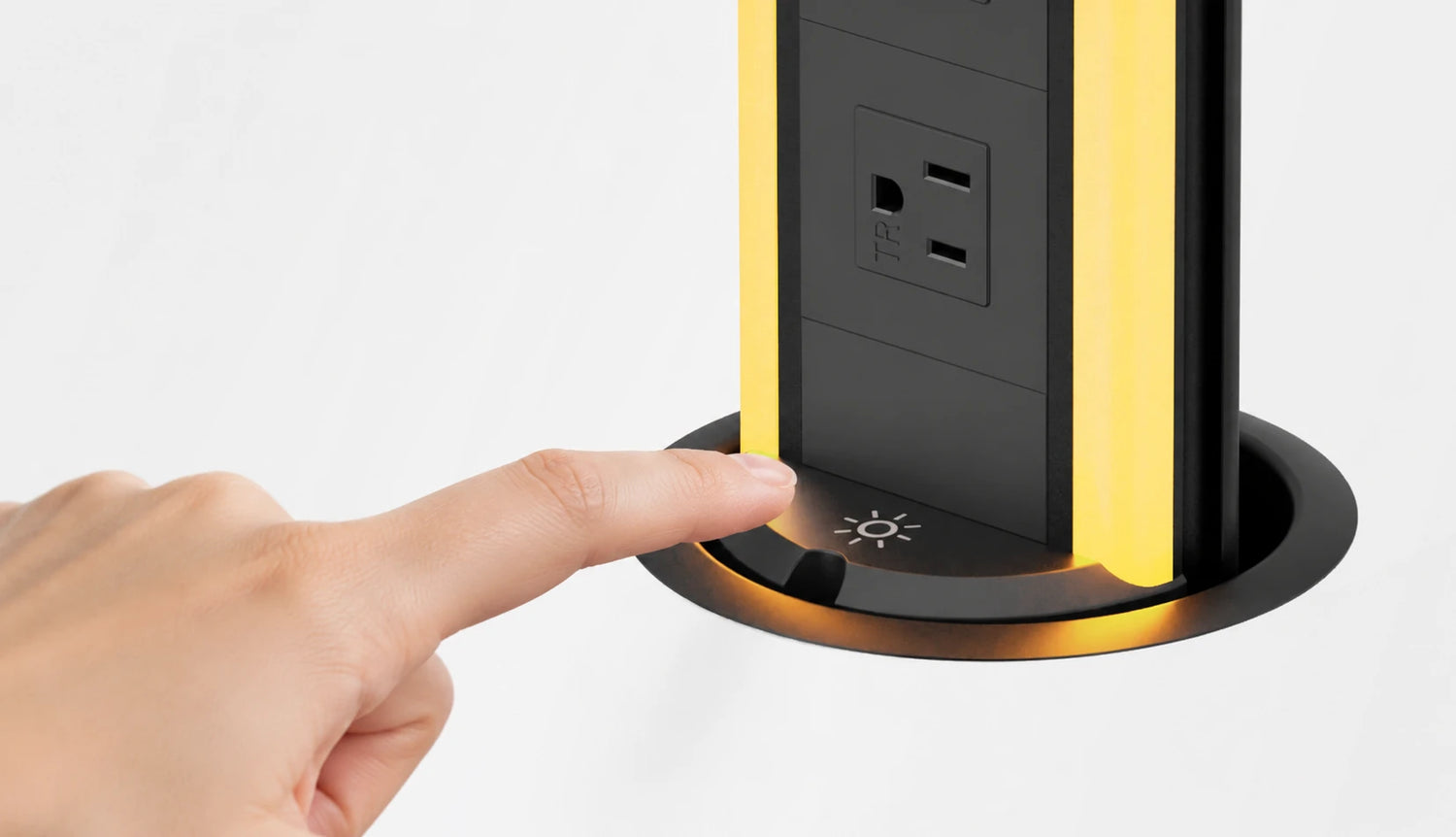

LED Light Control
Tap the light button to turn the LED light on or off. Press and hold to adjust the brightness to your preferred level.

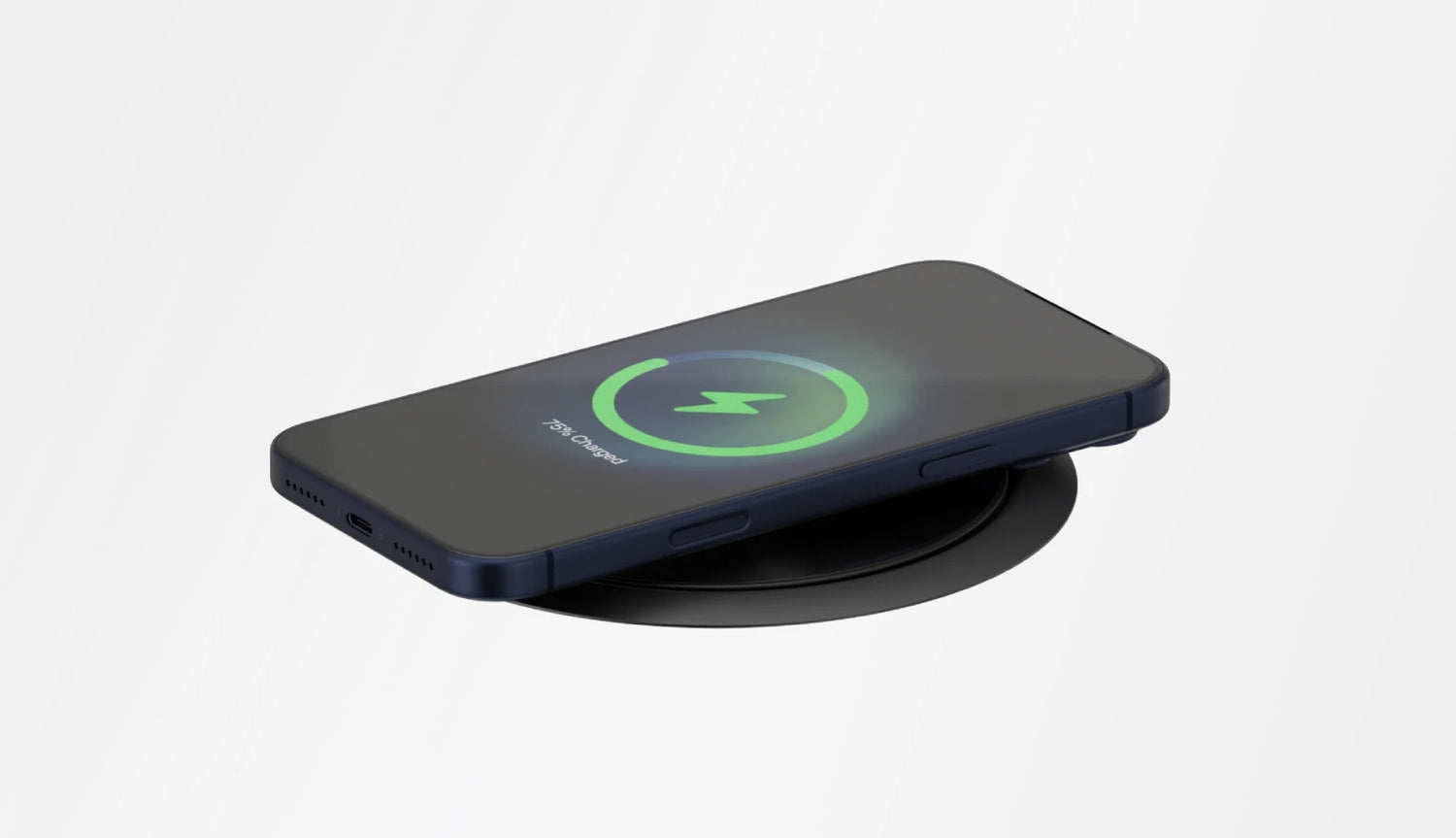

Wireless Charging
Place your mobile phone on the top to charge.

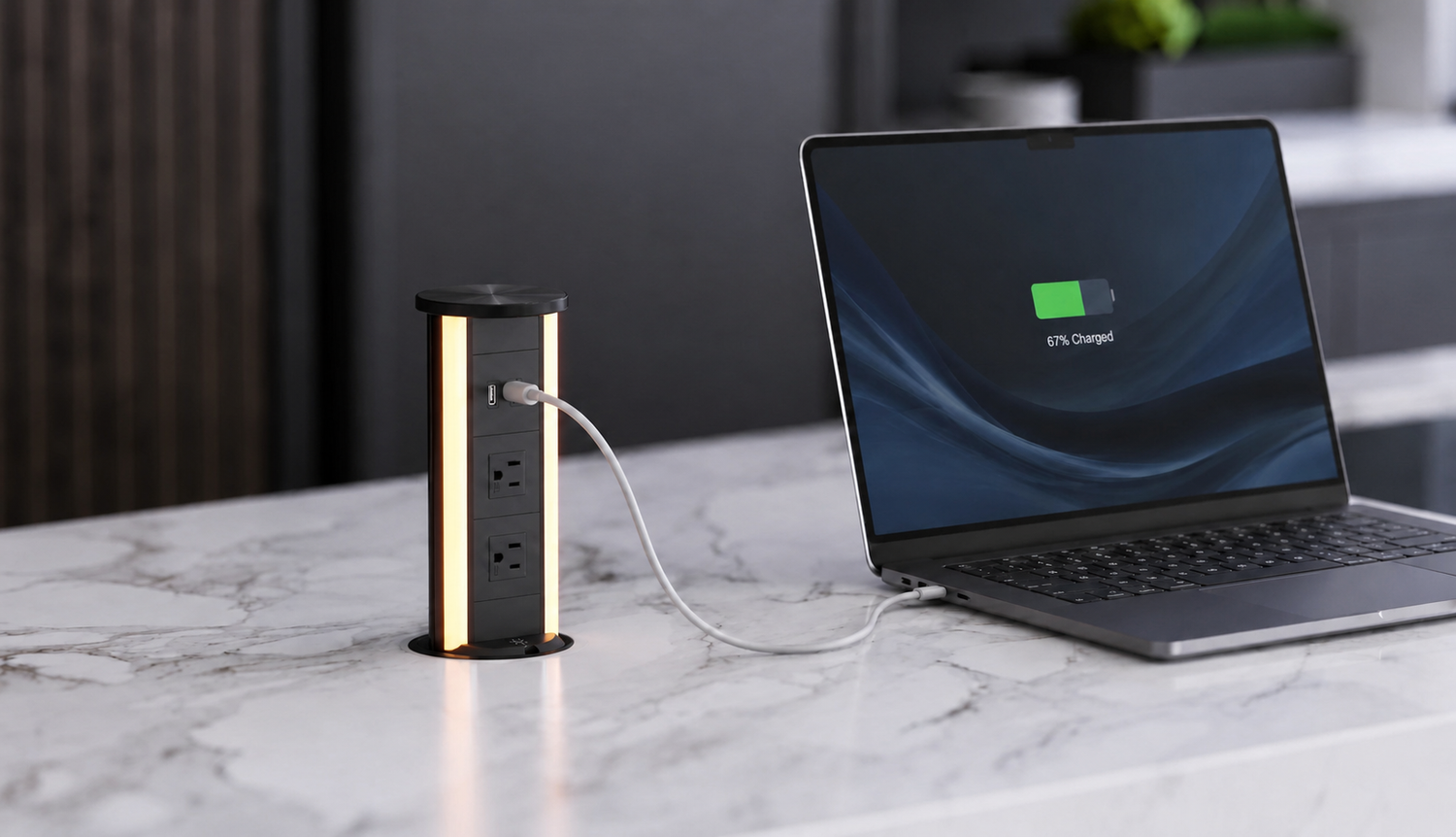

65W USB-C Charging
Charge laptops, tablets, and smartphones directly with the integrated 65W USB-C fast charging port. No bulky power adapters required.

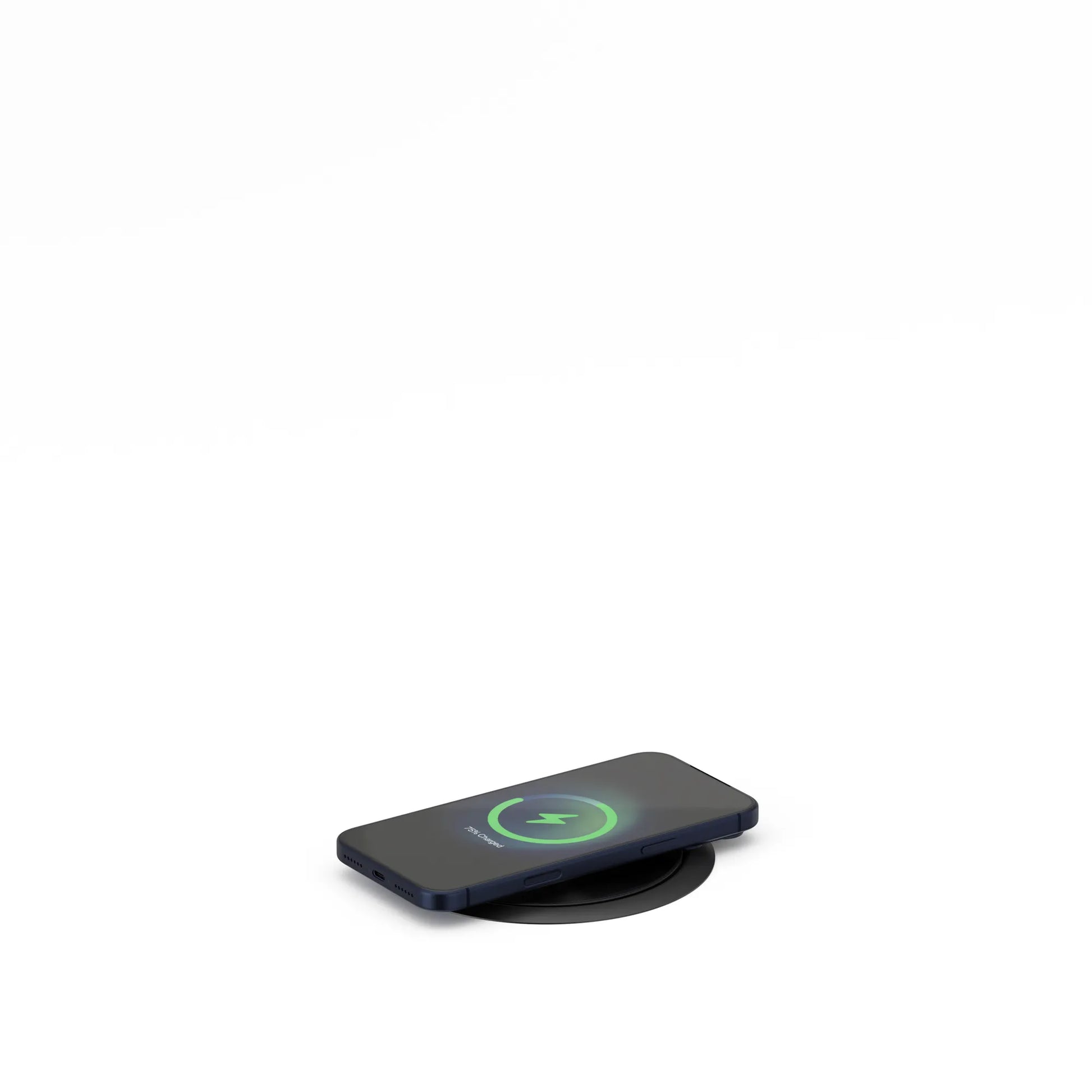

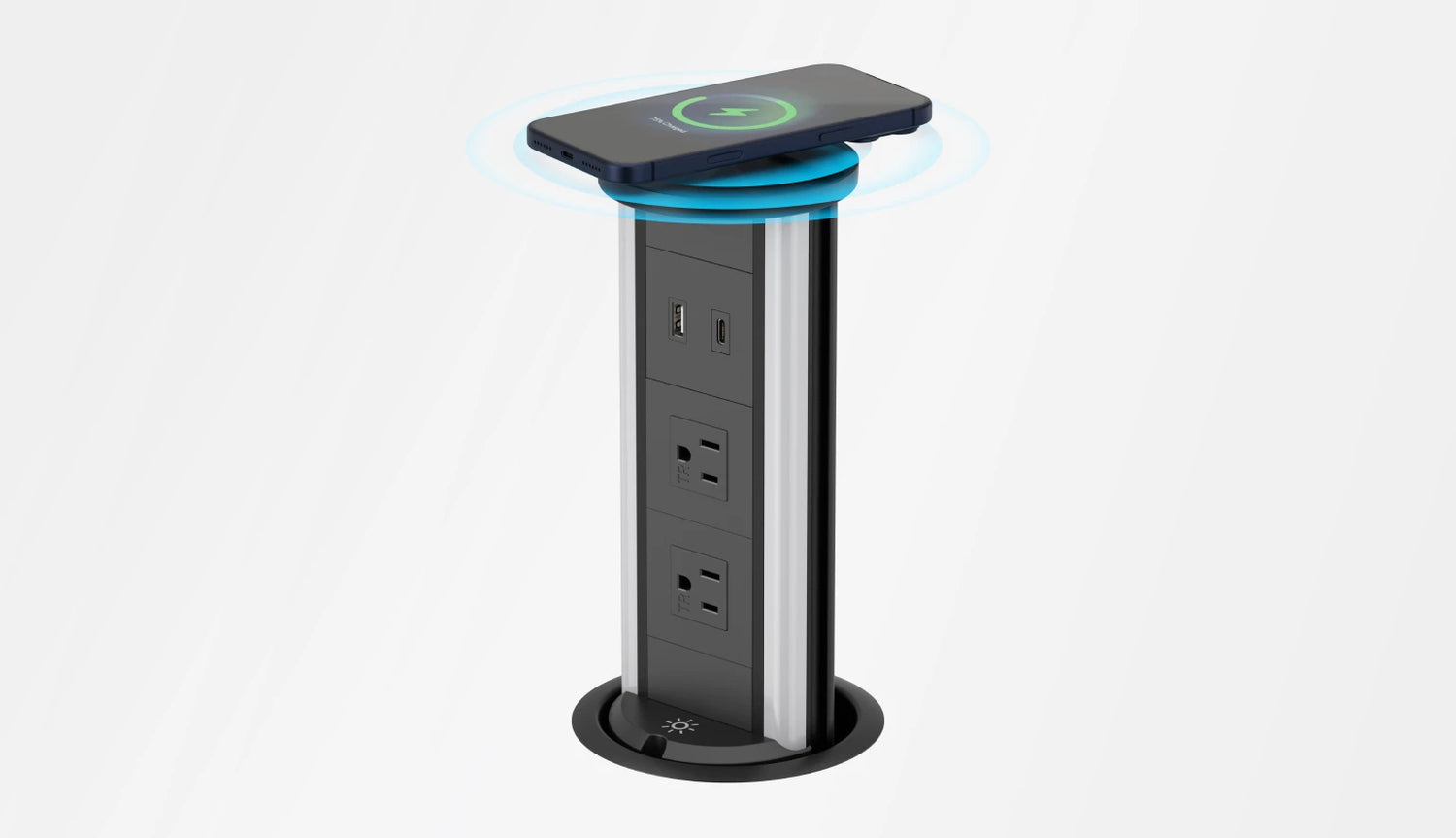

Wireless Charging In Any Position
The built-in wireless charger remains fully functional in every position - up, down, open, or retracted.

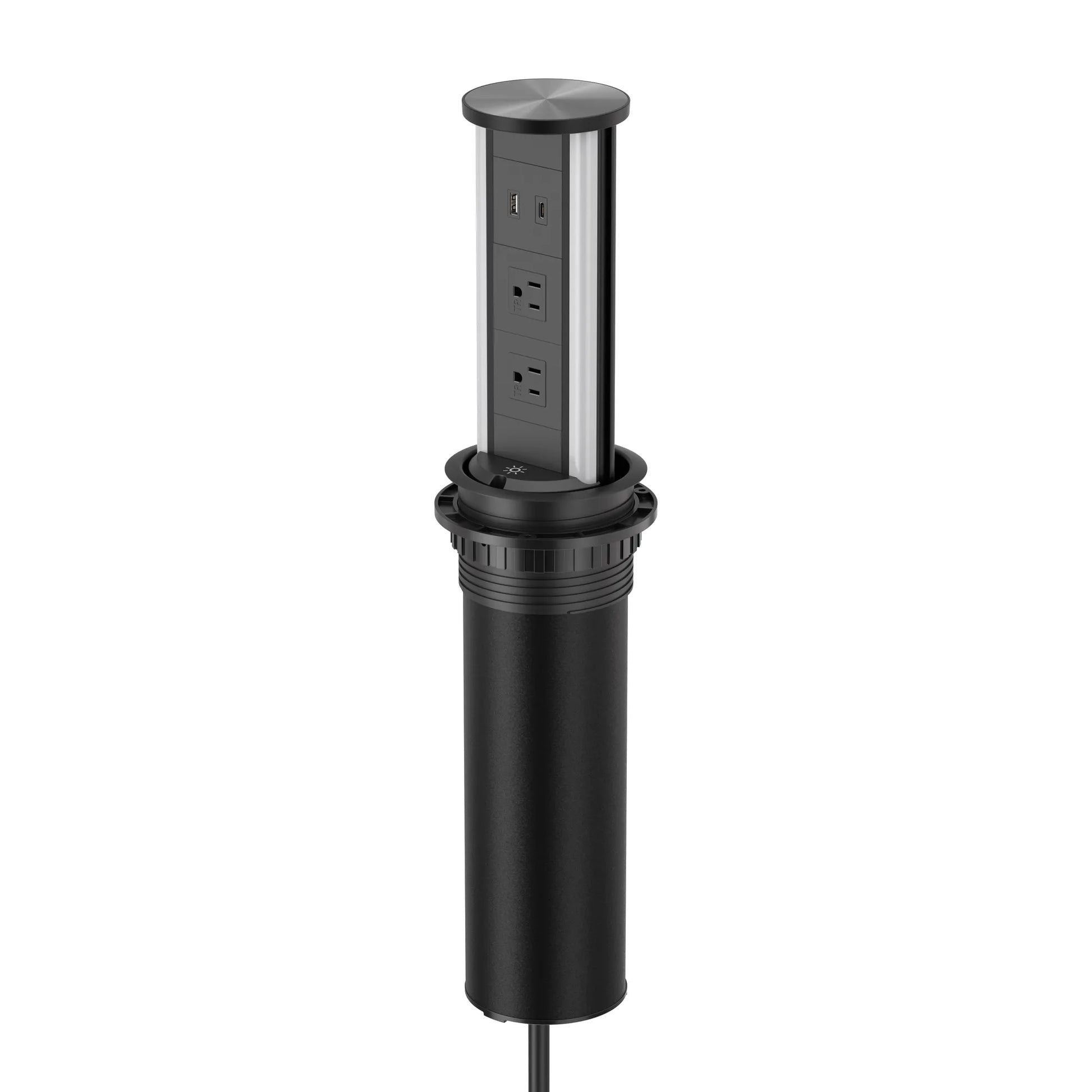

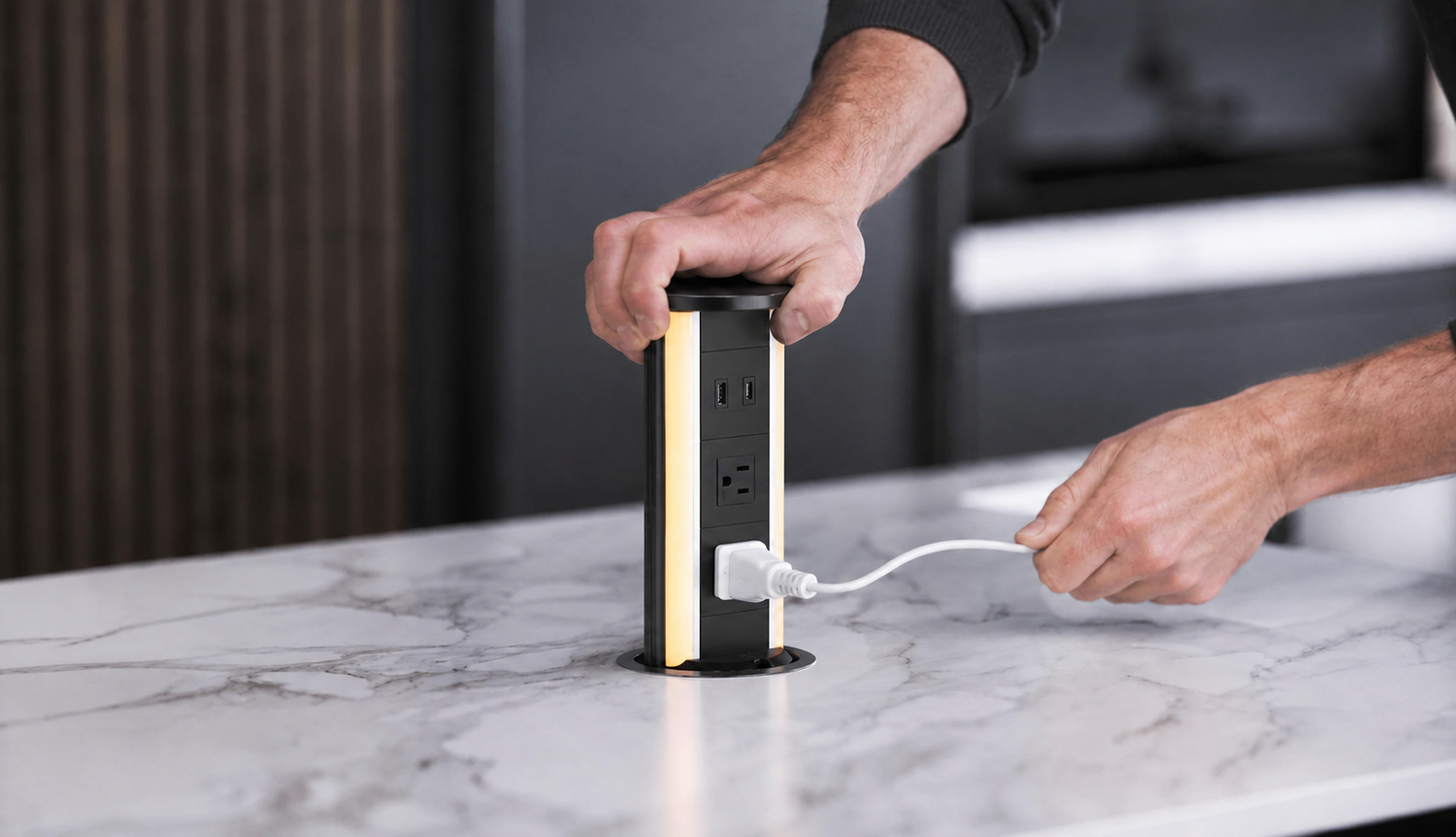

Stable when raised
The extended body is designed to remain stable during normal everyday use.

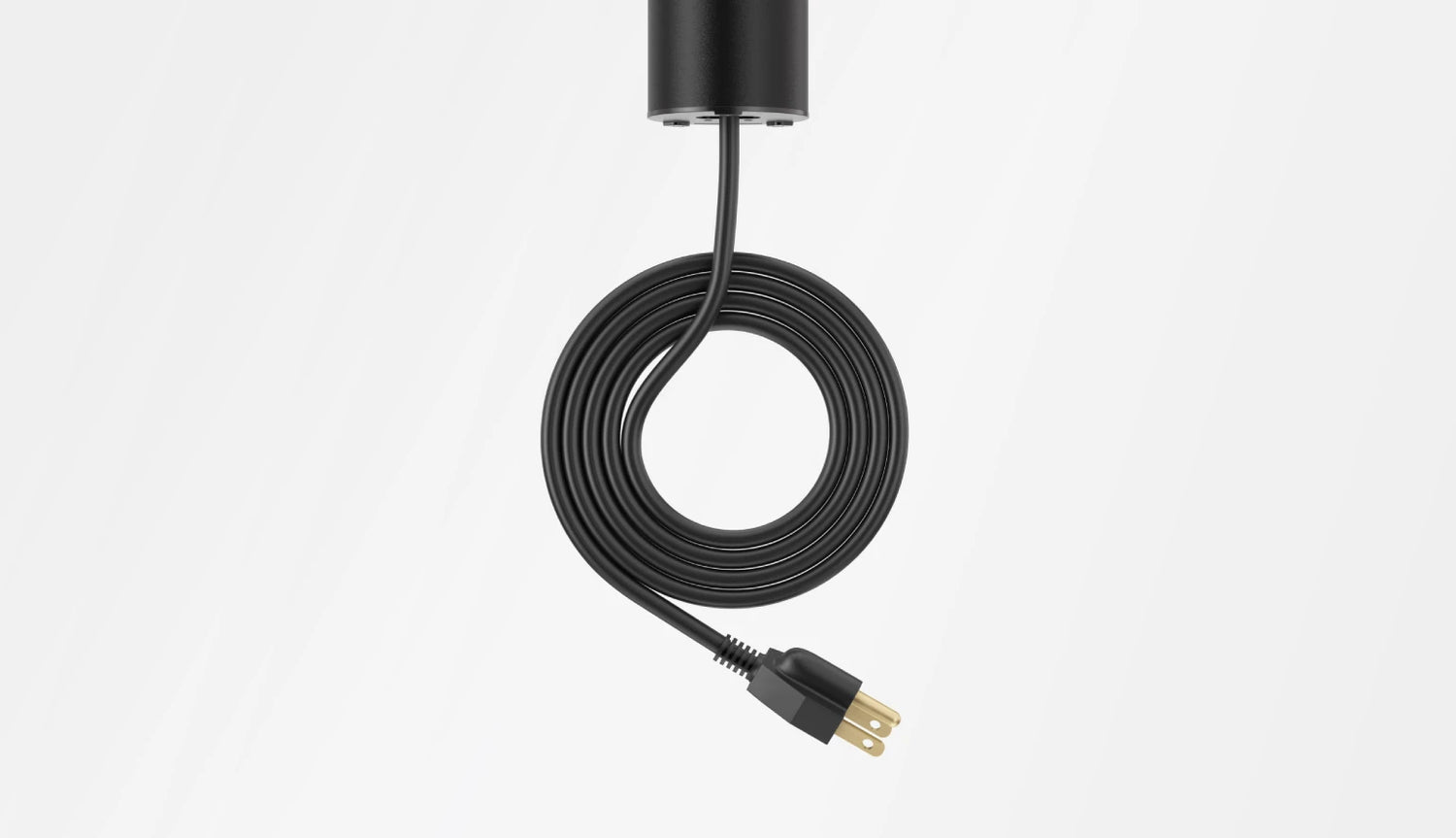

Plug and Play

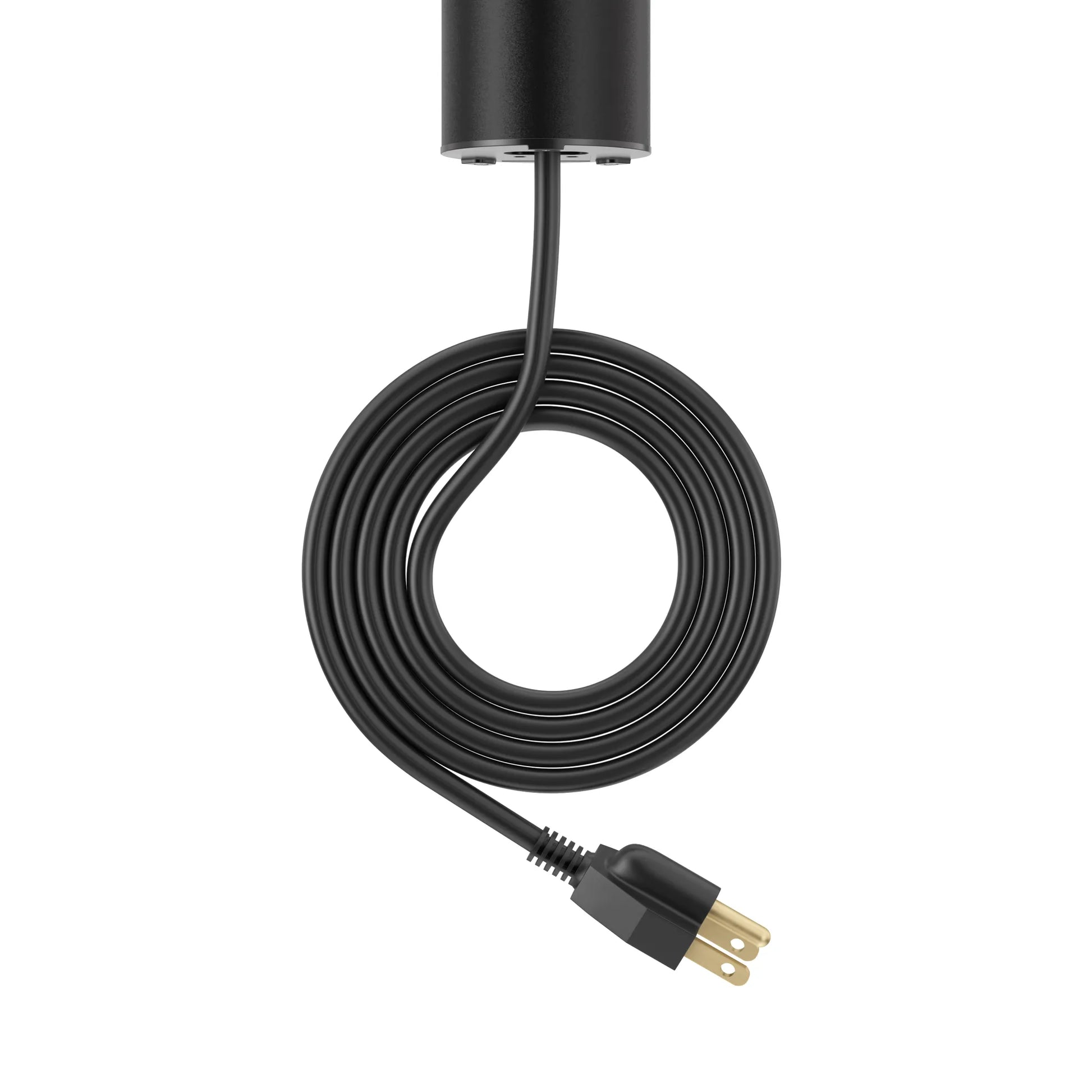

An approximately 5 ft fitted cable plugs into a standard grounded US receptacle. Do not cut or alter the fitted cord.

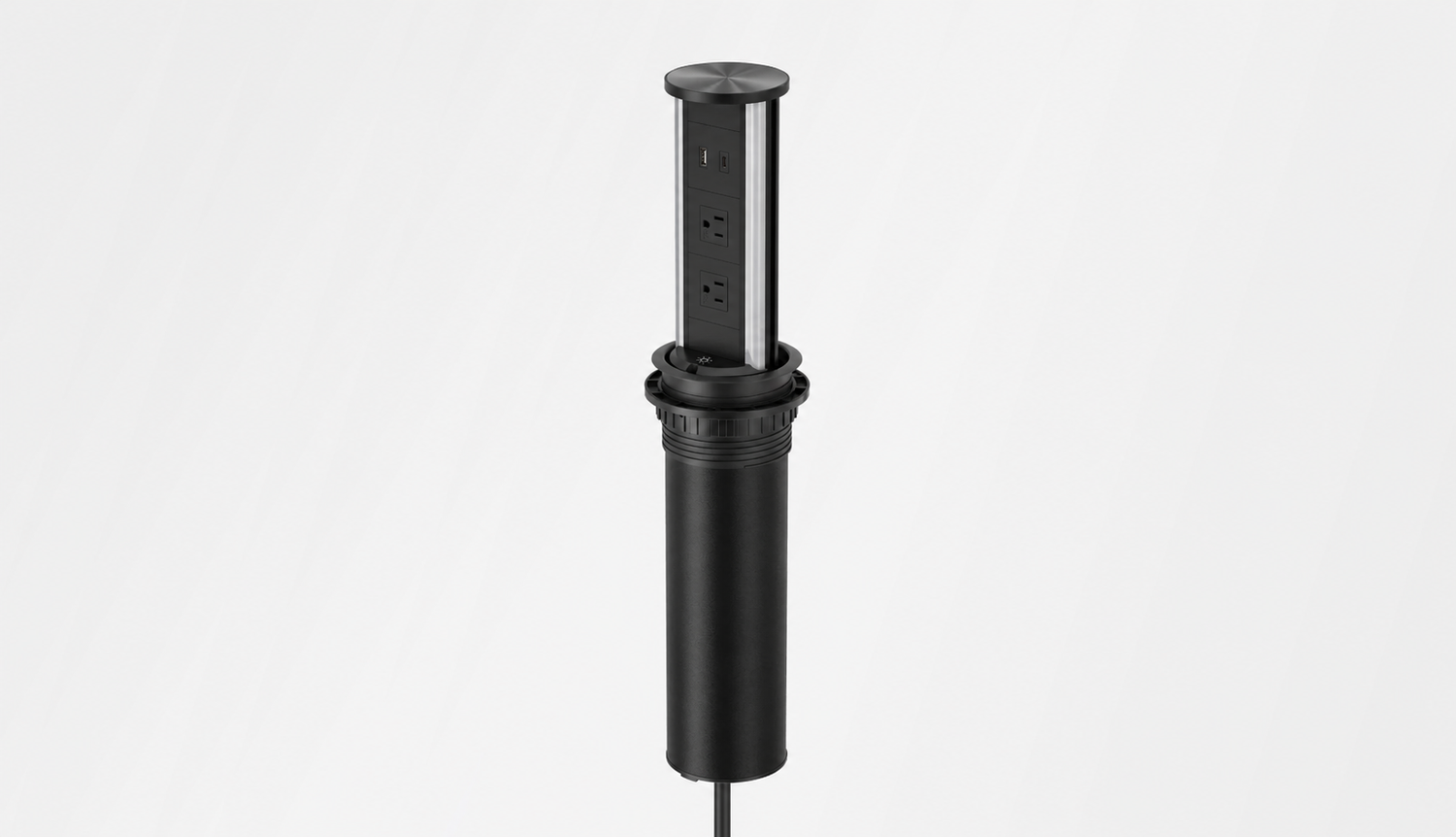

Elegant Design, High Quality Build
Constructed with an extruded aluminum body.

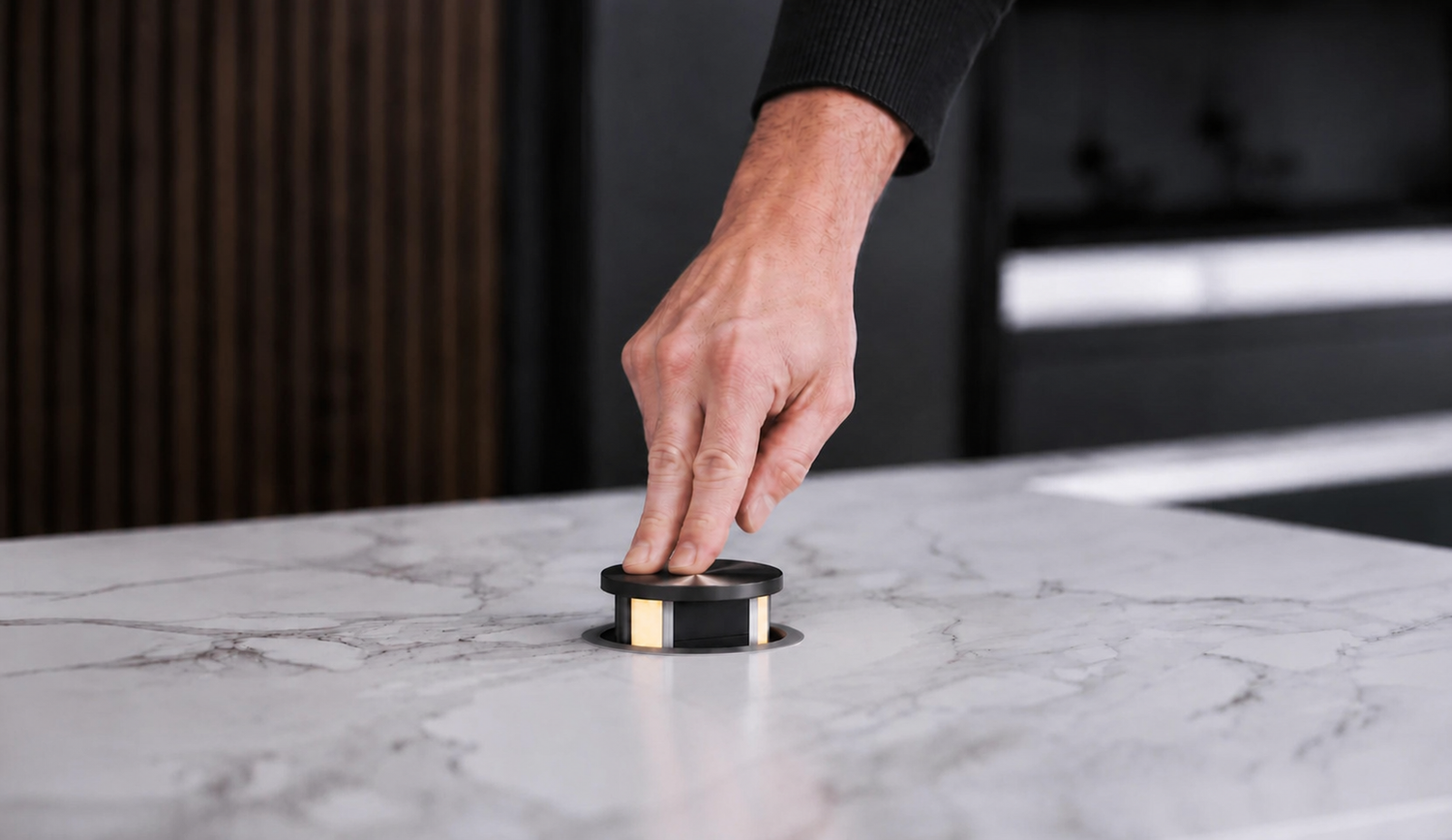

The Most Intuitive Design
Push down to release, then watch it rise smoothly on its own.
Maximum output
15A, 125V AC, 60Hz and 1,875W maximum total load. USB-A up to 30W, USB-C up to 65W, and wireless charging up to 10W.
Designed with Safety in Mind
Indoor, dry-location use only. Plug-in installation with a fitted US cord.
Protective Packaging
Designed to protect during shipping and storage. Each unit arrives in a durable carton that helps ensure it reaches you in perfect condition.
ETL safety certification
ETL Listed for the US and Canada to UL 962A and CSA C22.2 No. 308; Control No. 4008355.
Current technical sheet
Download current dimensions, ratings and installation information for V16B-US.
Warranty and support
Includes a 24-month warranty with local servicing. Warranty claims can be submitted online. Submit a claim or support request.
Returns information
Returns are accepted within 30 days when the product is undamaged and in good condition. A 10% restocking fee applies; exchanges within 30 days have no restocking fee. Read full conditions.
Shipping information
Free shipping covers most U.S. addresses. Business-day orders normally dispatch within 24 hours; delivery typically takes 2–5 business days. View current shipping information.
GFCI protection
Install on a grounded circuit that meets local code. Where GFCI protection is required, it may be provided upstream or with a suitable adapter; confirm the installation with a qualified electrician. View the optional GFCI adapter.

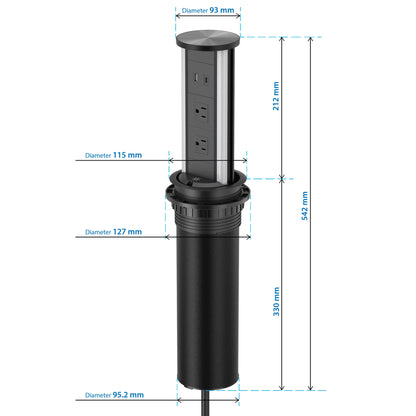

Dimensions and cutout
Check the hole size, countertop thickness and the space needed below before you install. Select the drawing to open it full size.
(opens full size in a new tab)
Dimensions and details
Specifications, support and common questions.
Electrical, installation, delivery and support information is consolidated here so it is easier to scan.
Specifications
Electrical
125V AC, 60Hz; 15A / 1,875W maximum total load.
Charging
USB-A up to 30W; USB-C up to 65W; together 30W + 30W maximum; wireless charging up to 10W.
Compliance
ETL Listed for the US and Canada to UL 962A and CSA C22.2 No. 308; Control No. 4008355.

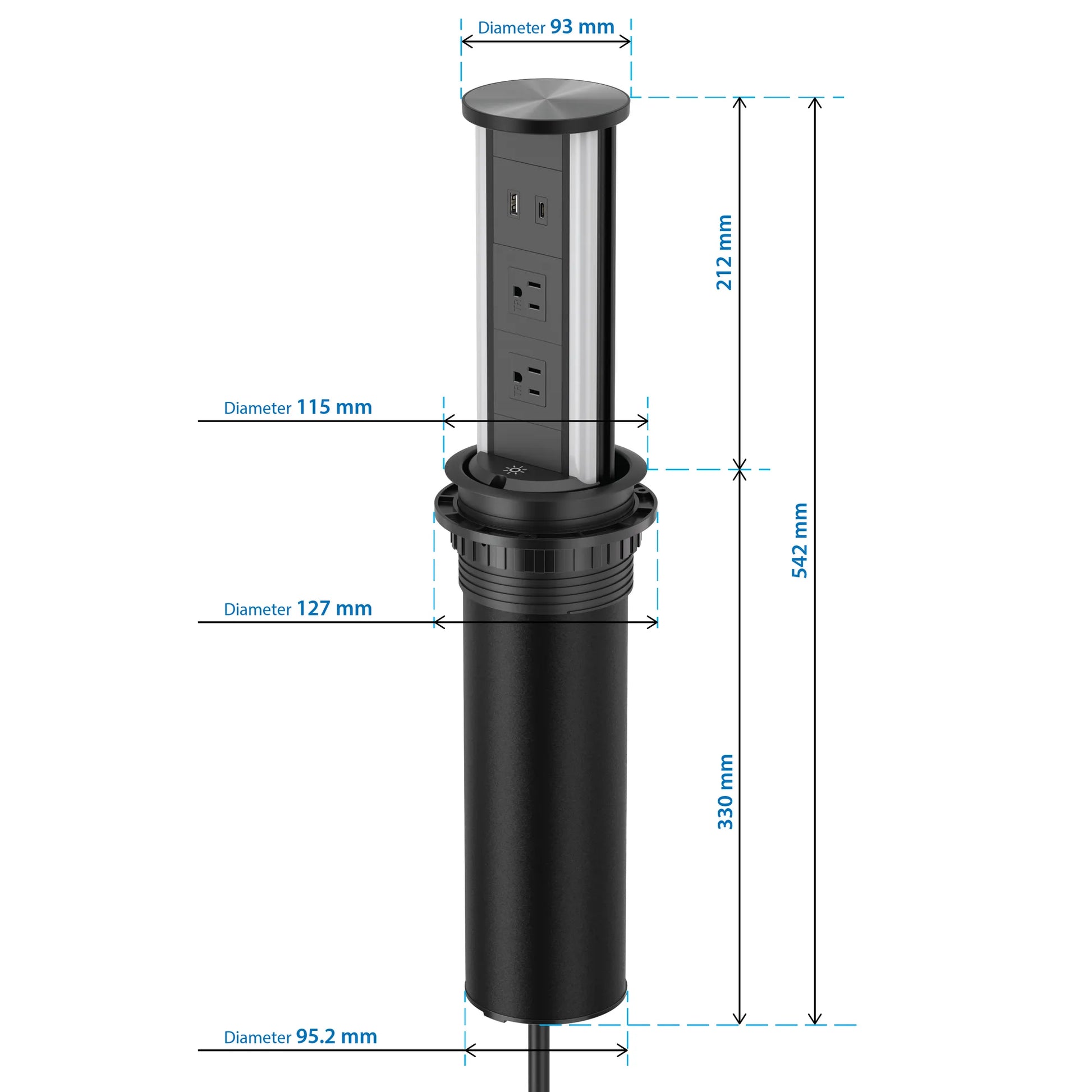

Installation dimensions
Opening: 101–105 mm; a 102 mm (4 in.) opening is recommended. Body: 95.2 mm diameter. Top flange: 115 mm. Locking ring: 127 mm. Body below surface: 330 mm. Allow at least 350 mm (13.8 in.) clear space below.
Delivery, warranty and support
Technical sheet
Current dimensions, ratings and installation information for V16B-US.
Warranty and support
Includes a 24-month warranty with local servicing. Warranty claims can be submitted online.
Returns
Returns are accepted within 30 days when the product is undamaged and in good condition. A 10% restocking fee applies; exchanges within 30 days have no restocking fee.
Shipping information
Free shipping covers most U.S. addresses. Business-day orders normally dispatch within 24 hours; delivery typically takes 2–5 business days. View current shipping information.
Frequently asked questions
Can the fitted cord be cut for hardwiring?
No. Plug the fitted cord into a grounded receptacle and do not cut or alter it.
Will a 4-inch hole fit?
Yes. The V16 fits 101–105 mm openings; a 102 mm (4 in.) opening is recommended. The body is 95.2 mm in diameter, with a 115 mm top flange and 127 mm locking ring.
Can it be used in wet locations?
No. The IP20 unit is for indoor, dry-location use only.
